SPECIFICATIONS
Hydraulic Pump 132kw Description

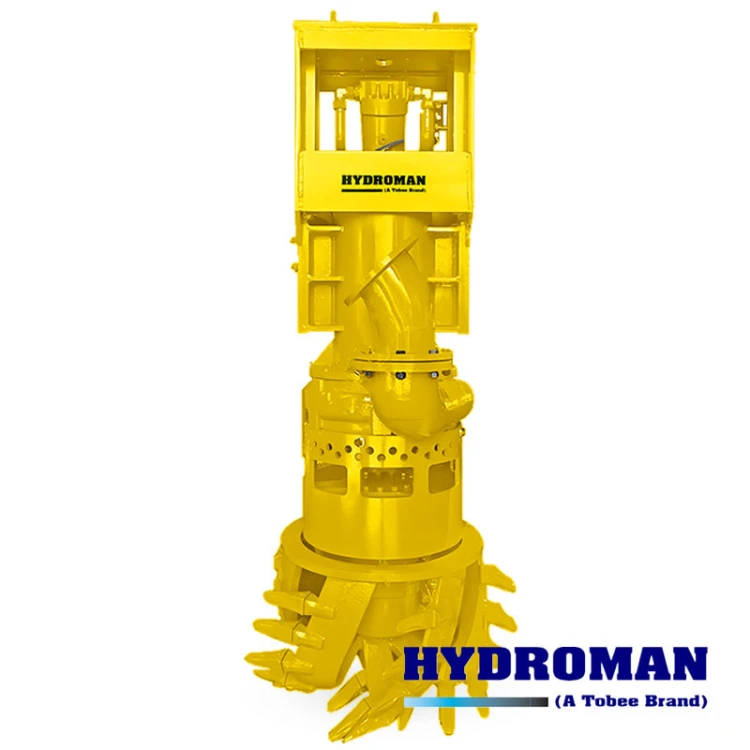

When dealing with packed sediment, high-density slurry, and submerged debris, standard pumping solutions simply fail. You need a Heavy Duty Hydraulic Pump for Underwater Excavation that can break, lift, and move material without clogging or wearing out prematurely. The Hydroman® 200THY132-6P is exactly that. This 200mm Outlet Hydraulic Submersible Pump for Dredging delivers exceptional performance through a high-torque hydraulic drive system, eliminating the limitations of electric motors in deep or remote settings. As a true Vertical Hydraulic Pump for Underwater Slurry Handling, it mounts directly to your excavator boom and operates fully submerged, turning your machine into a mobile dredging powerhouse. The built-in bottom cutter means you get a Hydraulic Submersible Slurry Pump with Head Cutter that tackles the toughest materials head-on. With 132kW Hydraulic Slurry Pump with Bottom Cutter capability, this unit moves high volumes of solids while keeping wear to an absolute minimum. Here is everything you need to know about deploying this industrial workhorse in your operation.
Four Design Features That Define This Vertical Hydraulic Pump
The Hydroman® 200THY132-6P is not a modified water pump—it is purpose-engineered for abrasive slurry handling. Here are four design features that separate it from conventional submersible pumps:
High-Chrome Wet End Components: The impeller, volute casing, and wear plates are cast from high-chromium alloy, typically with hardness exceeding 58 HRC. This material withstands the abrasive action of sand, gravel, and mineral tailings far longer than cast iron or stainless steel alternatives. In mining applications where other pumps require component replacement every few weeks, the high-chrome construction extends service intervals to months of continuous operation.
Low-Speed High-Torque Hydraulic Motor: Unlike electric submersible pumps that spin at 1,500 to 3,000 RPM, the hydraulic motor in this Hydraulic Submersible Slurry Pump with Head Cutter operates at significantly lower rotational speeds while delivering higher torque. This directly reduces the velocity at which abrasive particles strike the internal surfaces, which is the primary mechanism of wear. Lower speed also means lower operating temperatures and longer seal life.
Bottom Cutter Head Integration: The cutter is not an optional bolt-on accessory—it is integrated into the pump's suction inlet design. The rotating cutter teeth break up settled sediment, clay layers, and compacted tailings before they enter the impeller. This pre-conditioning step prevents bridging and clogging while increasing the concentration of solids that can be pumped. The cutter teeth are designed to be field-replaceable, reducing downtime for maintenance.
Excavator Hydraulic Direct Drive: The pump connects directly to your excavator's auxiliary hydraulic circuit, requiring no separate power unit or electrical hookup. This Heavy Duty Hydraulic Pump for Underwater Excavation draws hydraulic flow and pressure from the machine's existing system, typically operating at 210 to 300 bar with oil flows appropriate for 20-to-40-ton excavators. The direct drive arrangement eliminates the energy losses associated with converting hydraulic power to electricity and back to mechanical motion.
Hydroman 200THY132-6P Hydraulic Submersible Pump Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/h) | Head (m) | Power (KW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 200THY132-6P | 200 | 400 | 30 | 132 | 60 | 250 | 27 | 300 |
| 200THY132-6P | 200 | 500 | 55 | 132 | 60 | 250 | 27 | 300 |
Mining Tailing Reclamation: Why This Submerged Hydraulic Pump for Sediment and Slurry Removal Excels
Mining operations generate vast quantities of tailings, process water, and settled sludge that must be managed continuously. Letting these materials accumulate leads to environmental compliance issues, lost storage capacity, and costly shutdowns. The Hydroman® 200THY132-6P functions as a Submerged Hydraulic Pump for Sediment and Slurry Removal that goes exactly where the material sits—at the bottom of your tailings pond, settling tank, or slurry basin. It does not rely on gravity feed or complex suction lines. Instead, it uses the excavator's own hydraulic flow to drive a high-torque motor that spins a high-chrome impeller and agitator at low speed, producing high suction power with minimal component stress.
This configuration is critical for tailings reclamation because mining slurry is both dense and abrasive. The Vertical Hydraulic Pump for Underwater Slurry Handling orientation allows the pump to be lowered directly into the pond, positioned precisely over accumulated solids, and operated continuously without cavitation issues. The bottom-mounted cutter head breaks up settled layers of fine tailings, sand, and clay, turning them into a pumpable slurry that can be moved to a different containment area or fed into a reprocessing circuit. Port authorities and mine operators who have deployed the 200mm Outlet Hydraulic Submersible Pump for Dredging report significantly faster cleanup cycles compared to conventional mechanical dredging methods, because the pump combines agitation, suction, and transport into one integrated attachment.
Harbor and River Dredging: The Industrial Vertical Hydraulic Pump for Slurry Applications That Clears Channels Fast
Navigable waterways are the lifeblood of maritime commerce, but siltation is relentless. Harbors, docks, and river channels require frequent dredging to maintain depth for vessel traffic. Traditional cutter suction dredgers are effective but expensive to mobilize, especially for smaller-scale maintenance dredging. The Hydroman® 200THY132-6P offers an alternative: a self-contained Industrial Vertical Hydraulic Pump for Slurry Applications that mounts to any compatible excavator, turning your existing earthmoving fleet into a dredging crew.
Here is how it works on a typical harbor maintenance project. The excavator positions itself on the dock edge or a floating barge, lowers the pump into the water, and the operator uses the boom to guide the unit across the silt bed. The bottom cutter—made from high-chrome cast alloy—spins at low revolutions per minute, breaking up compacted sediment layers without creating excessive turbidity that would violate environmental permits. The Hydraulic Submersible Slurry Pump with Head Cutter then lifts the loosened material through a 200mm (8-inch) discharge line, sending it to a disposal barge or dewatering bag system.
Frequently Asked Questions
Q: What excavator size is required to operate the 200mm Outlet Hydraulic Submersible Pump for Dredging?
The 200THY132-6P is designed for medium-to-large hydraulic excavators typically in the 20 to 40 metric ton range. The specific hydraulic requirements include an auxiliary circuit capable of delivering approximately 250 to 320 liters per minute at 210 to 280 bar. Most excavators in the 25-ton class and above meet these specifications, but Hydroman® provides compatibility verification and adapter brackets for specific machine models. For smaller excavators, the THY series includes lower-flow models with reduced outlet diameters.
Q: How does this pump compare to an electric submersible pump for deep underwater slurry handling?
The advantages are substantial. Electric submersible pumps require high-voltage cables that become impractical at depths beyond 20 to 30 meters due to voltage drop and cable weight. They also pose significant safety risks in wet environments. The Submerged Hydraulic Pump for Sediment and Slurry Removal uses hydraulic hoses that can extend to 50 meters or more with minimal performance loss. Additionally, electric pumps have a fixed speed and limited overload capacity, while the hydraulic unit provides variable speed control and can handle instantaneous torque spikes when the impeller encounters dense material. The hydraulic motor also has no electrical components to short out or overheat, making it inherently more reliable in submerged service.
Q: What is the maximum solids concentration the Industrial Vertical Hydraulic Pump for Slurry Applications can handle?
The 200THY132-6P is engineered to handle slurries with up to 70% solids by weight, depending on particle size distribution and specific gravity of the material. This capacity is achieved through the combination of the bottom cutter head—which breaks up settled solids before they enter the pump—and the open impeller design, which allows particles up to approximately 100mm to pass through without clogging. For context, 70% solids by weight is roughly equivalent to a mixture of sand and water that has the consistency of wet concrete. Few pumps on the market can handle this density reliably over extended periods.
Ready to Deploy the Hydraulic Submersible Slurry Pump with Head Cutter for Your Project?
The Hydroman® 200THY132-6P transforms your hydraulic excavator into the most versatile dredging asset on your job site. Whether you are reclaiming mining tailings or maintaining harbor channels, this Heavy Duty Hydraulic Pump for Underwater Excavation delivers the cutting power, abrasion resistance, and pumping capacity that conventional solutions cannot match. Hydroman® Hydraulic Submersible Slurry Pump with Head Cutter features a 200mm outlet and 132kW power for demanding tasks. This Vertical Hydraulic Pump for Underwater Slurry Handling ensures efficient submerged excavation with bottom cutter. Contact us now!
