SPECIFICATIONS
Hydroman Hydraulic Pump Description
Hydroman® 150THY75-6P: Heavy Duty Submersible Pump for Slurry and Solids Engineered for Extreme Abrasive Environments
In the toughest dredging and mining environments, nothing compares to the Hydroman® 150THY75-6P — a Heavy Duty Submersible Pump for Slurry and Solids that redefines operational reliability.
This Hydraulic Submersible Solids Handling Pump for Excavators is engineered for vertical underwater submerged use, delivering unmatched solids handling capacity in the most abrasive conditions.

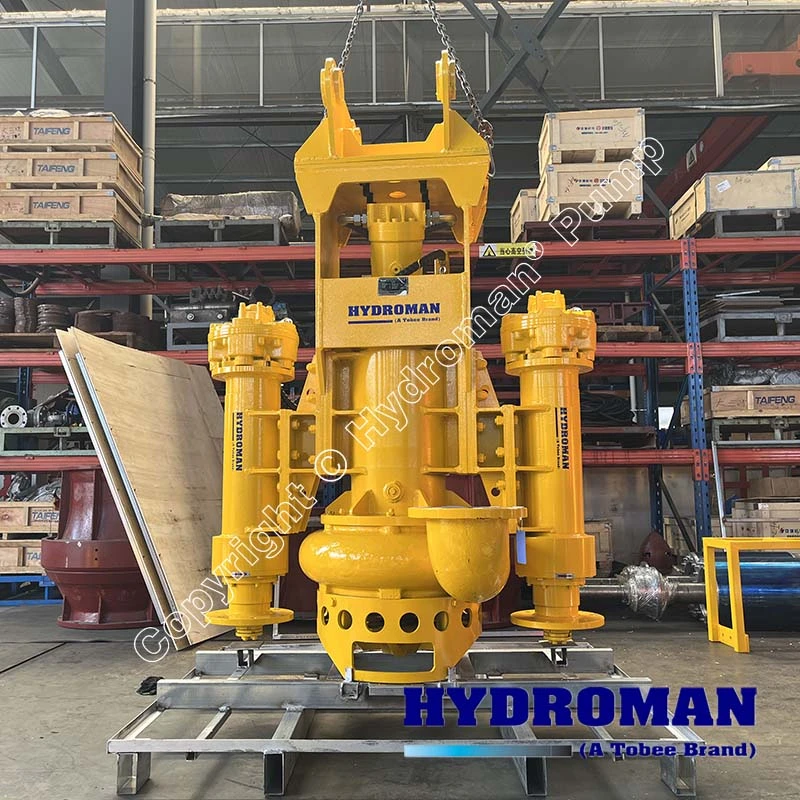

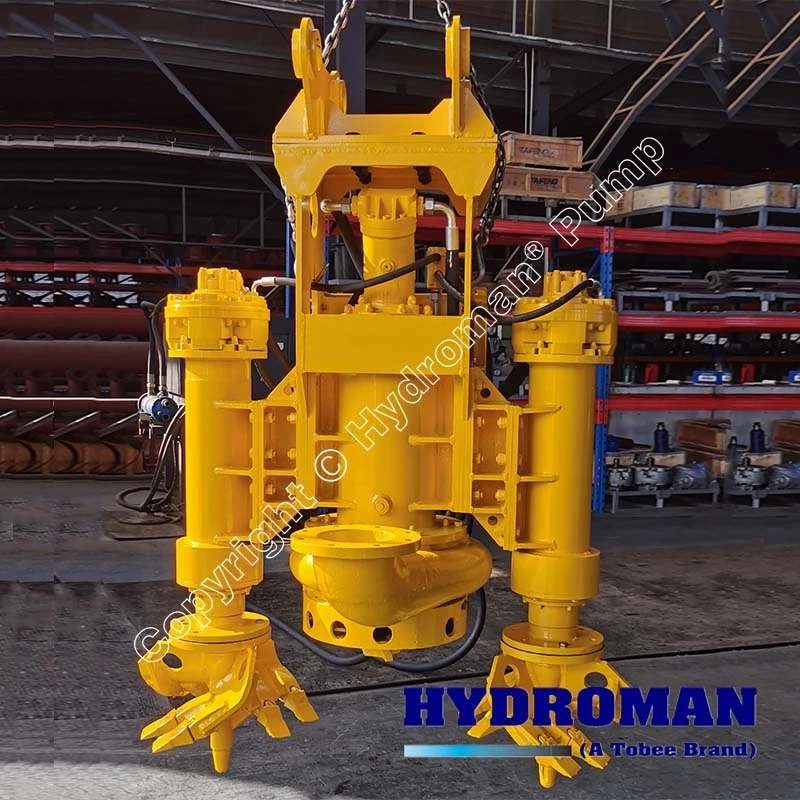

With a 150mm (6-inch) discharge, this 150mm 6 Inch Outlet Hydraulic Solids Pump is built to transfer high-density slurry, sand, gravel, and tailings without clogging. It is also a 75kW Excavator Driven Submerged Solids Handling Pump that leverages the excavator's hydraulic system for ultimate job site flexibility.

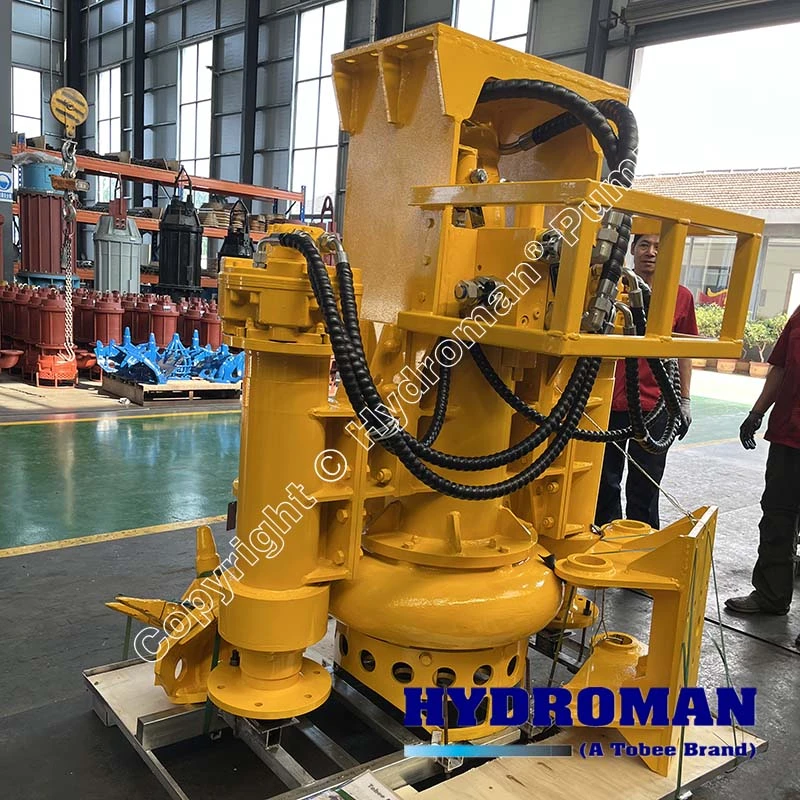

As a Vertical Hydraulic Pump for Underwater Solids Handling, the 150THY75-6P excels where electric pumps fail — in flooded pits, deep lagoons, and remote locations without power access.
In demanding industrial environments — from mining tailings to river dredging — standard pumps wear out too fast or clog too easily. The Hydroman® 150THY75-6P solves both problems with a heavy-duty design built for extreme abrasive conditions.
Unlike electric pumps that risk motor burnout underwater, this hydraulic-driven pump eliminates electrical hazards entirely. The result? Continuous, reliable solids handling where other pumps fail.
4 Design Features of the Hydraulic Submersible Solids Handling Pump for Excavators
1. High-Chrome Wear Parts for Extreme Abrasion Resistance
All wetted components — pump casing, impeller, guard, and mixing impeller — are cast from high-chrome alloy, providing exceptional resistance to sand, gravel, and tailings erosion. This metallurgy extends pump life dramatically compared to standard cast iron pumps.
2. High-Efficiency Agitator for Settled Solids
The integrated high-efficiency agitator breaks up compacted sediment and mixes settled solids into a pumpable slurry. This agitator design prevents clogging and enables the pump to handle up to 70% solids by weight — far beyond the capability of conventional pumps.
3. Hydraulic Drive with Variable Speed Control
Powered directly by an excavator's auxiliary hydraulics or a standalone hydraulic power pack, the 150THY75-6P offers infinite speed control. Operators can match pump speed to specific material conditions — slower for light sludge, faster for thick sand and gravel — optimizing both efficiency and wear life.
4. Fully Submersible Vertical Design
Engineered for vertical underwater operation, this pump operates fully submerged without priming or special pump houses. Its rugged construction ensures continuous performance in deep water, flooded excavations, and remote sites where electric power is unavailable.
Hydroman 150THY75-6P Hydraulic Submersible Solids Handling Pump Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/h) | Head (m) | Power (KW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 150THY75-6P | 150 | 200 | 50 | 75 | 30 | 160 | 28 | 160 |
Mining & Tailings Management
In mining operations, tailings ponds and settling basins accumulate heavy solids that quickly destroy conventional pumps. The Hydroman® 150THY75-6P excels at transferring tailings slurry, coal cinders, and mineral concentrates.
Mount the pump directly to an excavator boom and drive it from the machine's hydraulic system — no external power required. This configuration allows operators to reach deep into tailings ponds, pump directly to processing or disposal areas, and relocate instantly when the pond shifts.
Key benefit: The high-chrome construction withstands the extreme abrasion of mining tailings, while the agitator keeps heavy solids in suspension for efficient transfer.
River, Harbor & Lake Dredging
Dredging projects demand pumps that can handle everything from fine silt to coarse gravel, often in remote locations without grid power. The 150THY75-6P, as a Vertical Hydraulic Pump for Underwater Solids Handling, is ideally suited for submerged dredging operations.
Deployed from an excavator or suspended by cable, the pump reaches deep sediment layers, agitates settled material with its high-efficiency agitator, and pumps slurry through the 150mm discharge to disposal areas.
Key benefit: No electrical hazards in water, variable speed control for different sediment types, and the ability to operate from an excavator's existing hydraulic system.
FAQ: Your Questions About the High Efficiency Hydraulic Solids Handling Pump System Answered
Q1: Can the Hydroman® 150THY75-6P operate fully submerged without additional equipment?
A: Yes. The Hydroman® 150THY75-6P is designed as a Vertical Hydraulic Pump for Underwater Solids Handling, operating fully submerged without priming or external pump houses. It requires only a hydraulic power source — either from an excavator's auxiliary system or a standalone hydraulic power pack — and is lowered directly into the slurry or sediment.
Q2: What solids concentration can this pump handle before clogging becomes an issue?
A: The 150THY75-6P can handle up to 70% solids by weight when equipped with its high-efficiency agitator. The agitator continuously breaks up settled material and keeps solids in suspension, while the large-flow-channel design allows relatively large particles to pass without clogging. This makes it a true Heavy Duty Submersible Pump for Slurry and Solids, capable of handling sand, gravel, tailings, and sludge that would quickly jam conventional pumps.
Q3: How does hydraulic drive compare to electric for submerged solids pumping?
A: Hydraulic drive offers several critical advantages for submerged solids handling. First, there are no electrical hazards in water — no risk of short circuits or motor burnout from seal failure. Second, hydraulic motors deliver high torque at low speeds, reducing wear on wetted components. Third, variable speed control allows operators to adjust pump output to match changing material conditions instantly. Finally, hydraulic pumps operate anywhere there is an excavator or hydraulic power pack, with no need for grid electricity — essential for remote mining and dredging sites.

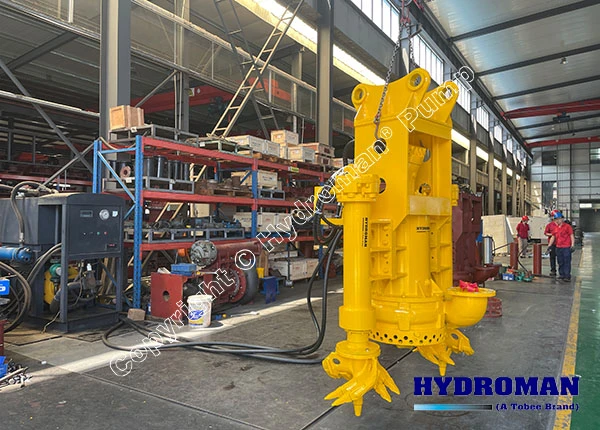

Why Choose the Hydroman® 150THY75-6P as Your Industrial Solids Transfer Pump with 150mm Discharge?
Longer wear life: High-chrome metallurgy extends service intervals in abrasive environments.
Clog-free operation: High-efficiency agitator and large-flow-channel design handle up to 70% solids.
No electrical hazards: Hydraulic drive eliminates submerged electrical risks and motor burnout.
Job site flexibility: Powered by excavator hydraulics or standalone hydraulic power pack — no grid power required.
Instant deployment: Mount directly to excavator boom and start pumping within minutes.
For dredging contractors, mining operators, and environmental remediation specialists, the Hydroman® 150THY75-6P delivers the reliability and performance that keep projects moving.
Contact Hydroman® today to discuss your specific solids handling requirements and request a quote for the Hydroman® 150THY75-6P, your Heavy Duty Submersible Pump for Slurry and Solids.
