SPECIFICATIONS
100mm Sludge Pump Description

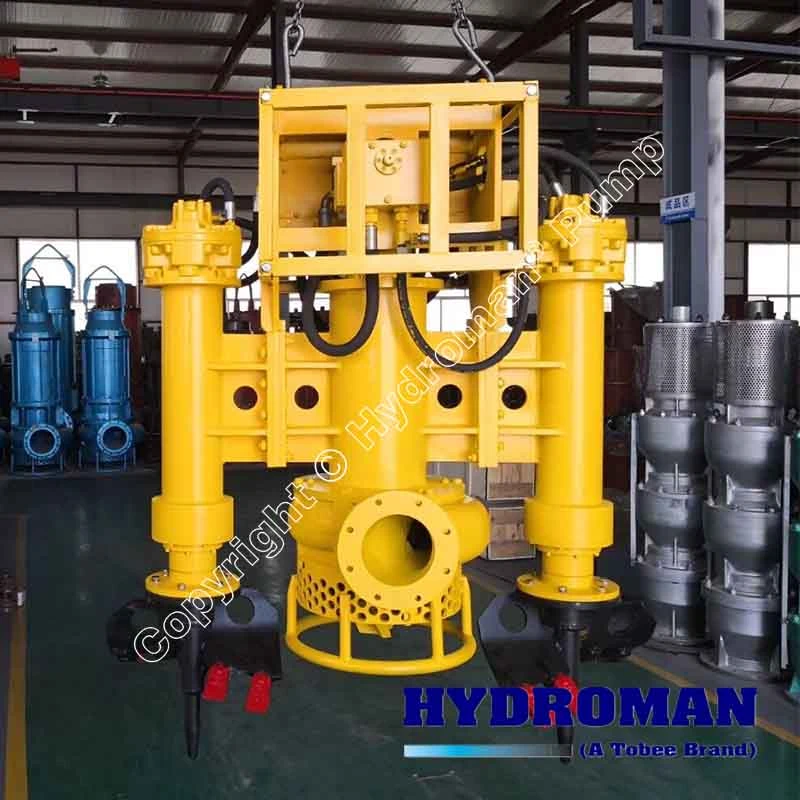

When tackling the toughest underwater sludge removal projects, selecting the right equipment is critical. The Hydroman® 100THY Hydraulic Sludge Pump with Side Cutters stands out as a premier choice for operators who demand efficiency and durability. This machine is specifically engineered for high-concentration slurry management, combining the power of hydraulic drive with aggressive cutting action. For professionals seeking a 4 Inch Excavator Hydraulic Submersible Sludge Pump that can handle compacted materials, this model delivers unmatched performance. It functions as a 100mm Vertical Hydraulic Pump for Sludge Removal, designed to integrate seamlessly with excavator hydraulics for deep-reach applications. Furthermore, it operates as a Submersible Hydraulic Pump with Dual Side Cutters, ensuring that even the most stubborn sediments are liquefied for easy transport. Whether you need an Excavator Mounted Sludge Pump for Heavy Duty Use or a reliable Underwater Hydraulic Pump for Sludge and Sediment, the 100THY7.5 Vertical Dredging Pump with Cutters provides the robustness required for continuous operation in abrasive environments.
Design Features of the 100THY Hydraulic Sludge Pump with Side Cutters
The construction of this pump focuses on longevity and high performance in harsh conditions. Unlike standard electric pumps, this unit leverages hydraulic power to eliminate the risks associated with electric motors underwater. Below are the core design elements that define this equipment:
Hydraulic Drive System: The pump is powered by a hydraulic motor, allowing it to be driven directly by a host excavator’s auxiliary circuit or a standalone Hydraulic Power Unit (HPU). This design offers variable speed control, enabling the operator to adjust flow rates based on the density of the sludge. It also allows for deep water submersion (up to 250 meters) without the risk of electrical short circuits, making it a true Underwater Hydraulic Pump for Sludge and Sediment.

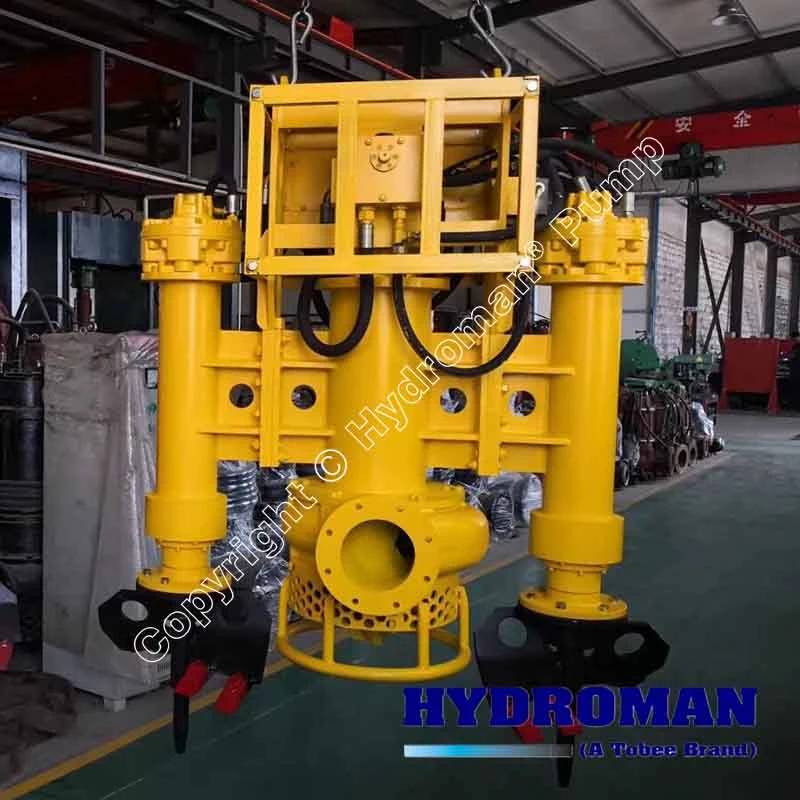

Dual Side Cutter Agitators: A defining feature of the Hydroman® 100THY Hydraulic Sludge Pump with Side Cutters is the set of high-chrome steel blades mounted on the sides. These cutters rotate in conjunction with the main impeller, actively breaking down compacted clay, fibrous debris, and hard-packed sand before they enter the suction inlet. This mechanism allows the pump to achieve solid handling capacities of up to 70% solids by weight, a critical advantage over conventional dewatering pumps.
High-Chrome Wear Parts: To withstand the abrasive nature of mining wastes, sand, and gravel, the wet end components—including the impeller, side cutters, and volute liner—are manufactured from high-chrome alloy. This material resists erosion, ensuring that the 4 Inch Excavator Hydraulic Submersible Sludge Pump maintains peak hydraulic efficiency over extended operational periods, reducing the frequency of part replacements.

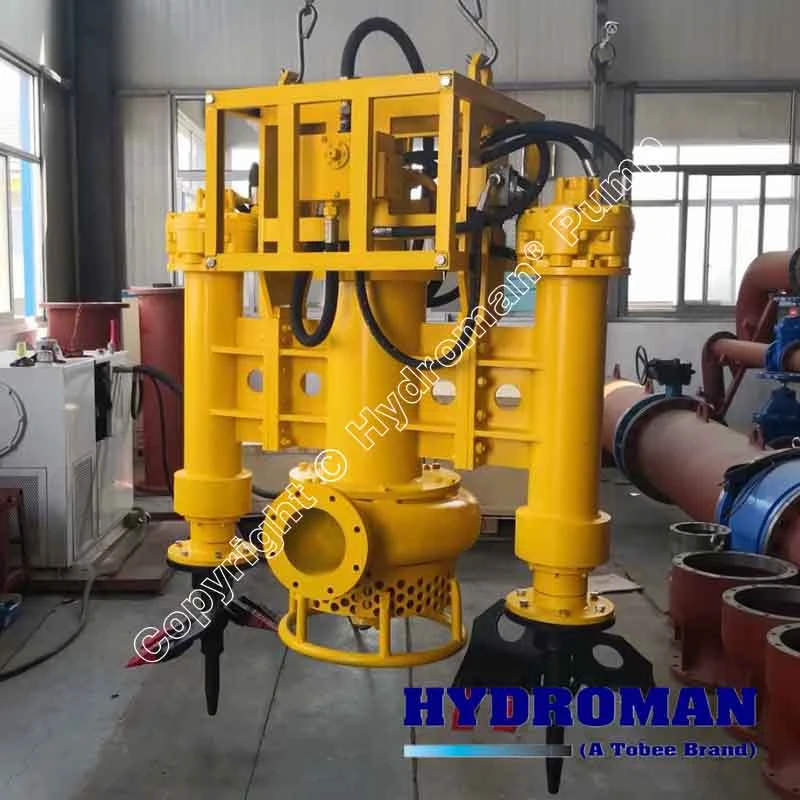

Vertical Submersible Configuration: Designed for vertical operation, the pump sits stably on the bottom of a pit or body of water. This 100mm Vertical Hydraulic Pump for Sludge Removal features a robust intake design that minimizes cavitation, ensuring consistent suction even when operating in fluctuating water levels. Its compact footprint allows it to be maneuvered into tight spaces such as clarifiers, tailings ponds, and deep excavation pits.
Hydroman® 100THY7.5-6P Hydraulic Sludge Pump with Side Cutters Performance Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/hour) | Head (m) | Power (KW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 100THY7.5-6P | 100 | 100 | 10 | 7.5 | 30 | 23 | 10 | 35 |
While this pump is versatile, it excels in two specific high-demand sectors that require the unique combination of excavation power and hydraulic reliability.

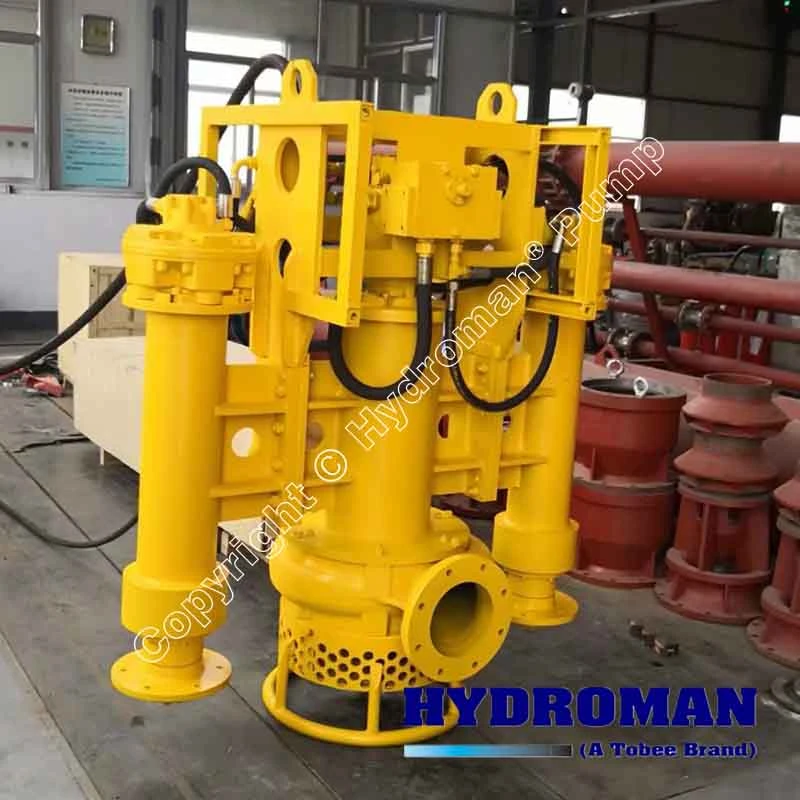

Excavator Mounted Sludge Pump for Heavy Duty Use in Mining and Tailings Management

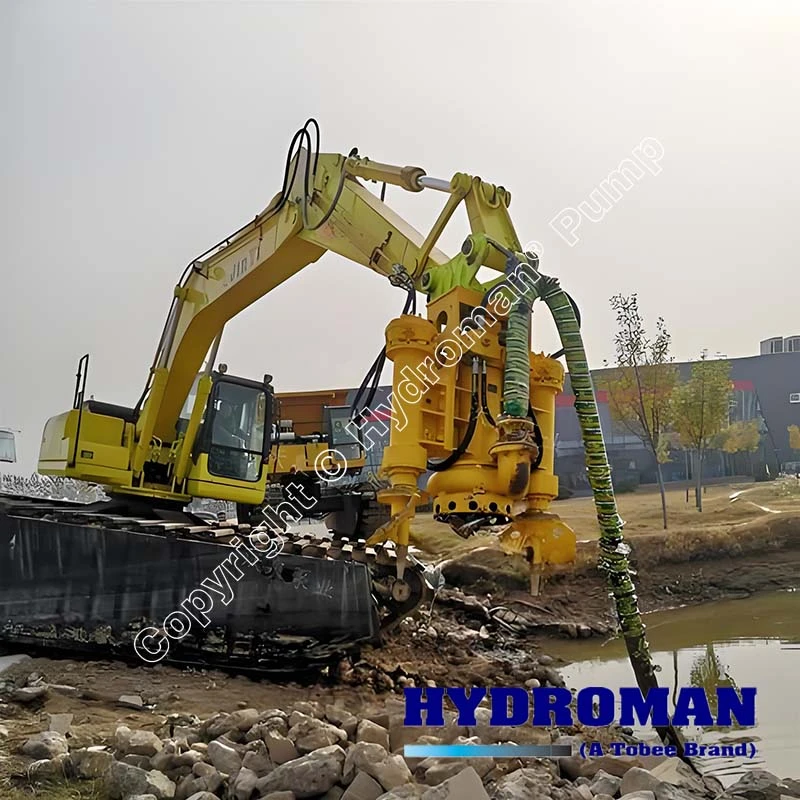

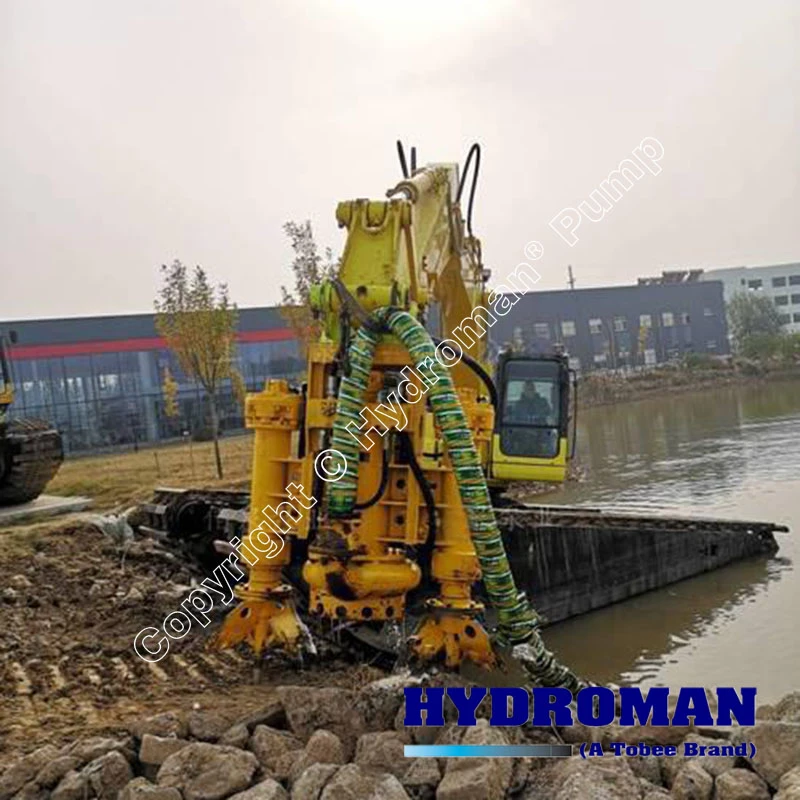

In the mining industry, managing tailings ponds and sediment accumulation is a constant challenge. The Hydroman® 100THY Hydraulic Sludge Pump with Side Cutters can be directly mounted onto the boom of a hydraulic excavator, effectively transforming the machine into a mobile dredging unit. This configuration allows operators to reach remote or unstable pond edges that stationary pumps cannot access.
The Excavator Mounted Sludge Pump for Heavy Duty Use eliminates the need for separate cranes or complex rigging. By utilizing the excavator’s existing hydraulic system, the pump provides immediate suction power while the operator controls the positioning of the intake from the cab. This setup is ideal for:
Removing settled tailings from settling ponds.
Cleaning out thick sludge from under water in quarry sumps.
Performing emergency dredging in areas with limited accessibility.
100THY7.5 Vertical Dredging Pump with Cutters for Industrial Wastewater and Clarifiers
Industrial facilities, such as wastewater treatment plants and chemical processing centers, rely on the 100THY7.5 Vertical Dredging Pump with Cutters to maintain operational hygiene. These facilities often deal with thick, settled sludge in clarifiers, equalization basins, and industrial pits that standard centrifugal pumps cannot agitate effectively.
The Submersible Hydraulic Pump with Dual Side Cutters is lowered directly into these tanks. The rotating cutters liquefy the settled mass, turning it into a homogenous slurry that is then pumped out for disposal or further processing. This application benefits significantly from the hydraulic drive, as it provides spark-free operation—a crucial safety feature when dealing with volatile organic compounds or explosive atmospheres commonly found in industrial wastewater environments.
Frequently Asked Questions (FAQ)
Q: What makes the Hydroman® 100THY Hydraulic Sludge Pump with Side Cutters different from a standard submersible electric pump?
A: The primary difference lies in the power source and cutting mechanism. As a 4 Inch Excavator Hydraulic Submersible Sludge Pump, it runs on hydraulic power, which is inherently safer for deep underwater use and offers variable speed control. Additionally, the Submersible Hydraulic Pump with Dual Side Cutters features mechanical agitators that actively break down compacted materials, allowing it to handle up to 70% solids by weight—a capability that standard electric dewatering pumps lack, as they are typically designed only for water with minimal solids.
Q: Can this pump be used directly with my existing excavator, or do I need a separate power source?
A: It is designed for versatility. The 100mm Vertical Hydraulic Pump for Sludge Removal can be connected to the auxiliary hydraulic circuit of most standard excavators, making it an ideal Excavator Mounted Sludge Pump for Heavy Duty Use. If an excavator is not available or if the pump needs to be deployed in a stationary setting, it can also be powered by a dedicated Hydraulic Power Unit (HPU) or a dredging barge hydraulic system.
Q: How does the side cutter system affect the pump’s maintenance requirements?
A: The side cutters are made from high-chrome alloy, specifically chosen for their resistance to abrasion. While they do reduce wear on the main impeller by pre-shredding solids before they enter the pump housing, routine inspection of the cutter blades is recommended. However, because the 100THY7.5 Vertical Dredging Pump with Cutters operates at a relatively low rotational speed compared to electric pumps, overall wear is minimized, leading to lower long-term maintenance costs and extended service intervals in abrasive environments.
Conclusion: Optimize Your Sludge Removal Operations
For industries that require consistent, high-volume removal of sediment, sand, and abrasive slurry, the Hydroman® 100THY Hydraulic Sludge Pump with Side Cutters represents a significant upgrade in efficiency and durability. Its unique combination of a vertical submersible design, dual high-chrome side cutters, and hydraulic versatility ensures that it outperforms traditional pumps in the most challenging environments. Whether you are mounting it to an excavator for tailings pond remediation or deploying it as a stationary unit in an industrial pit, this pump delivers the power needed to move high-density materials over long distances.
Hydroman® 100THY Hydraulic Sludge Pump with Side Cutters is a vertical submersible solution for underwater sludge removal. Featuring dual cutters for efficient sediment handling. Contact us today for details!
