Hydroman 4 Inch Pump Description

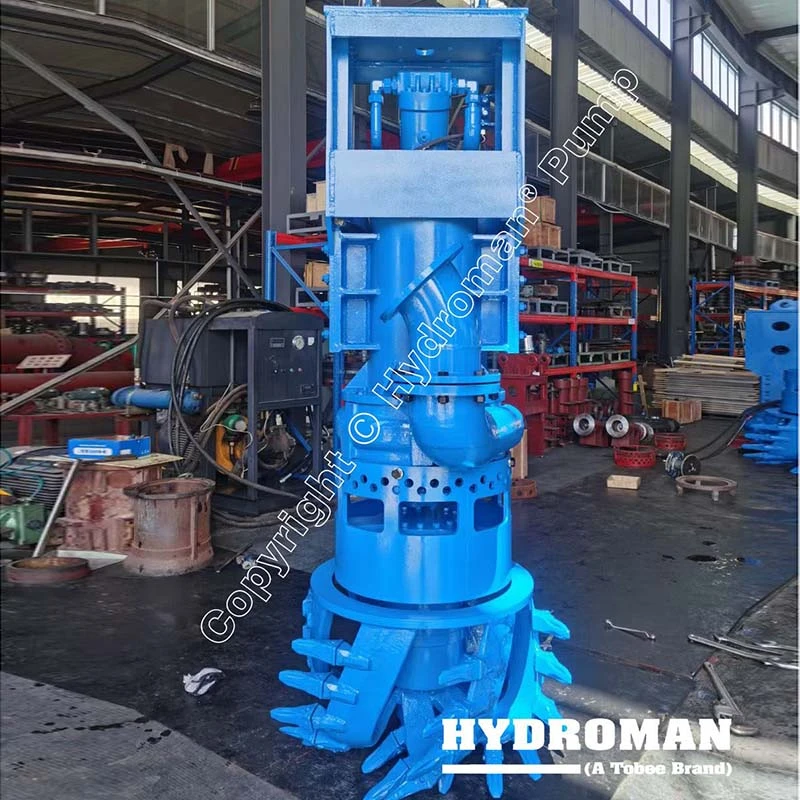

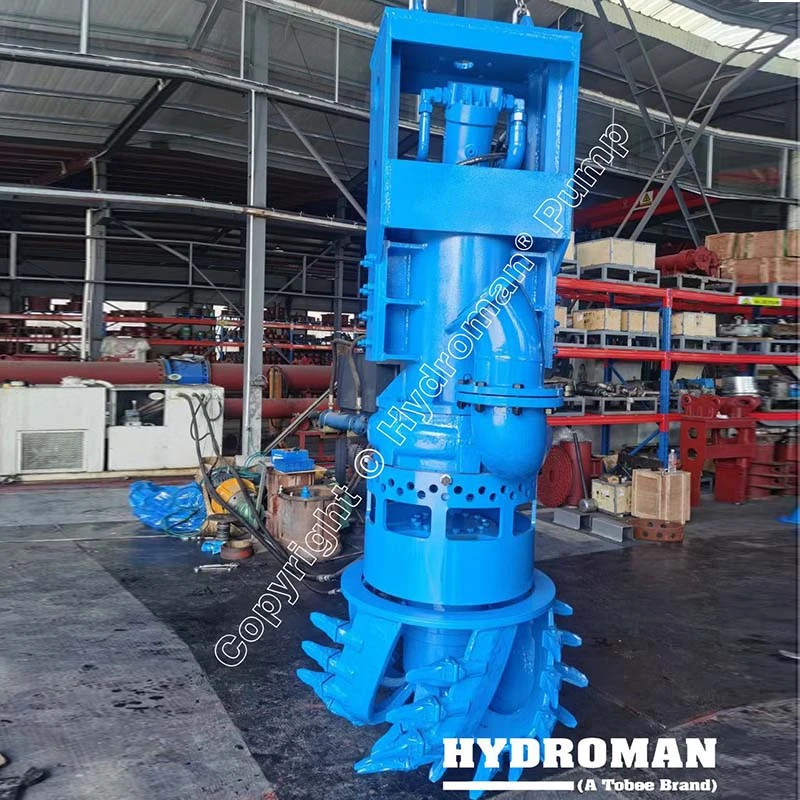

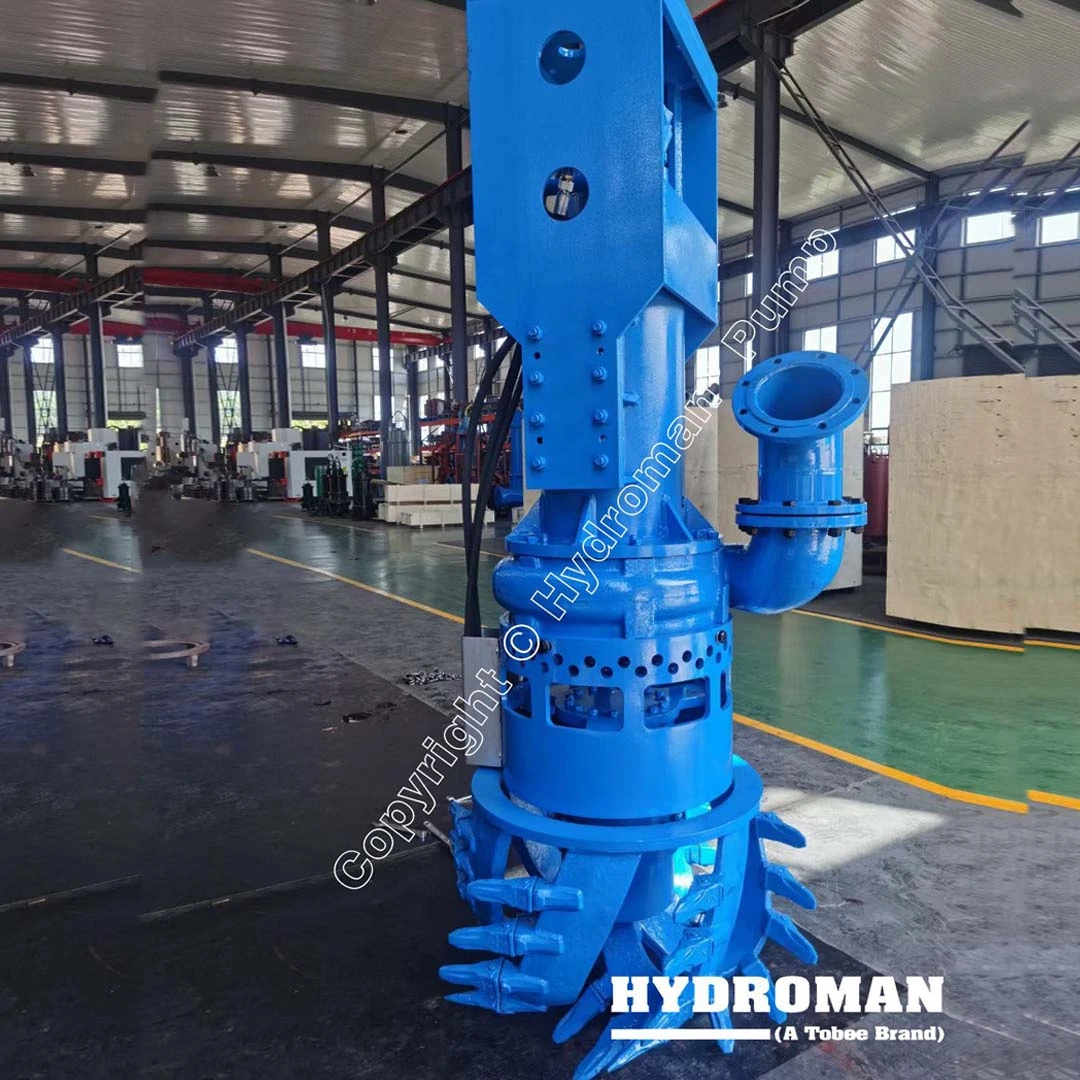

For underwater sand and silt extraction, the 100THY45-6P Hydraulic Submersible Pump for Dredging delivers exceptional performance. This 4 Inch Hydraulic Slurry Pump for Underwater Work functions as a Vertical Hydraulic Pump for Submerged Dredge Operations while utilizing excavator hydraulics. The 45kW Hydraulic Pump for Sand and Silt Removal combines power and durability. This Heavy Duty Hydraulic Dredge Pump for Slurry Handling excels in extreme conditions.

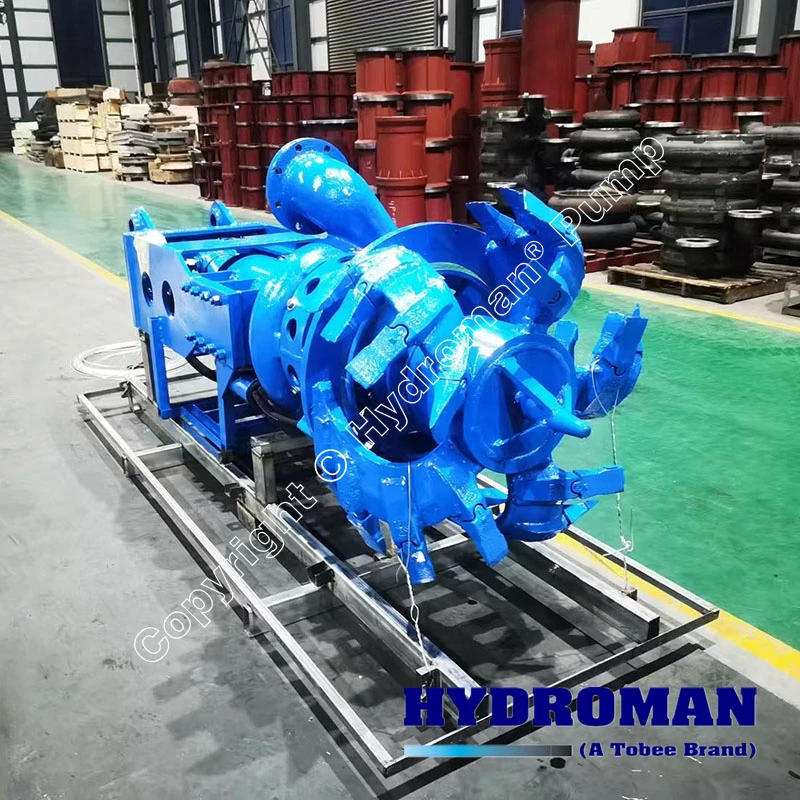

The Hydroman® 100THY45-6P Hydraulic Driven Dredge Pump is engineered for severe-duty submersible dredging. Unlike electric pumps that require shore power or generators, this 4-inch unit draws energy from an excavator‘s hydraulic circuit. This makes it ideal for remote project sites where electrical infrastructure is absent or unreliable.
The pump operates fully submerged, using hydraulic pressure to drive a high-torque motor that spins both the main impeller and an integrated agitator. This dual-action mechanism creates a powerful vortex that lifts settled solids and transports them through the discharge line. The result is a pump that can handle slurries with up to 70% solids by weight, far exceeding what most conventional pumps can manage.

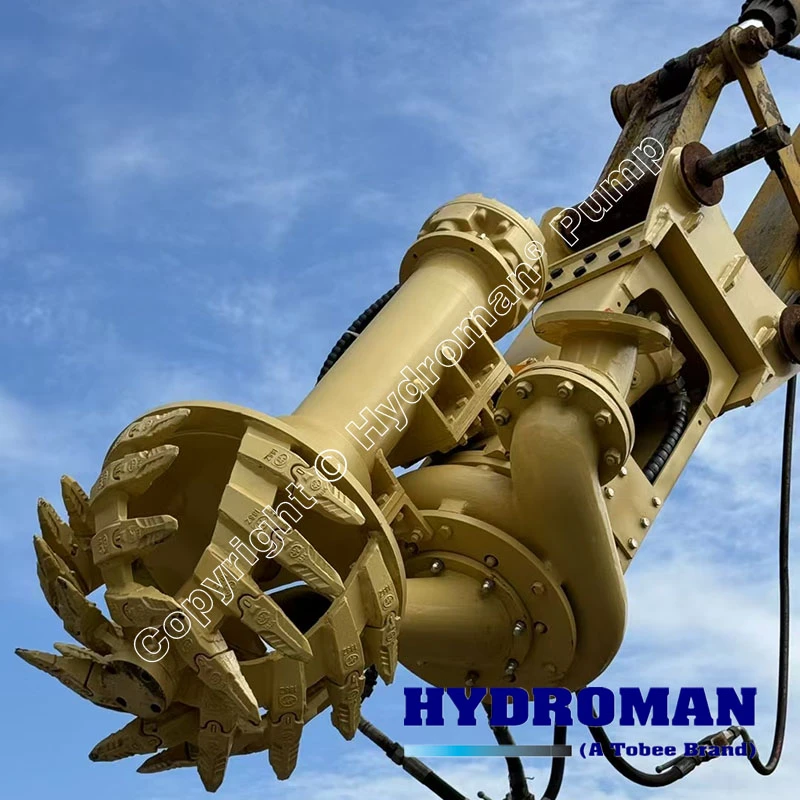

Because the pump mounts directly to an excavator arm, operators can precisely position the intake exactly where material accumulation is most concentrated. This targeted suction reduces dilution and improves production efficiency.
5 Robust Design Features of the Hydroman® 100THY45-6P Hydraulic Submersible Pump
High-Chrome Alloy Construction (27% Cr HRC65+): All wear parts—impeller, casing, agitator—are cast from premium high-chrome alloy. This metallurgy resists abrasion from sharp sand grains, jagged gravel, and mineral slurries, extending service life in punishing conditions.
Bottom-Mounted High-Efficiency Agitator: A heavy-duty agitator is mounted directly below the suction inlet. It creates a fluidized zone that lifts compacted sediment, allowing the pump to continuously ingest high-concentration slurries without clogging or cavitation.
Robust Hydraulic Motor with High Torque: The hydraulic motor delivers consistent torque even under fluctuating load conditions. It has no electrical components, meaning no risk of short circuits or motor burnout when fully submerged.
Variable Speed Control: By adjusting oil flow from the excavator or power pack, operators can fine-tune pump speed to match material density. Lower speeds reduce wear when pumping fine sand, while higher speeds accelerate production in loose gravel.
Double Mechanical Seal Protection: A dual-seal arrangement prevents abrasive particles from entering the hydraulic motor housing. This sealing system, combined with a front deflector, ensures long-term reliability even when pumping aggressive slurries.
Hydroman® 4 Inch Hydraulic Driven Dredge Pump Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/h) | Head (m) | Power (KW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 100THY45-6P | 100 | 160 | 38 | 45 | 55 | 125 | 22 | 125 |
Mining & Tailings Management: Dewatering Settling Ponds and Extracting Valuable Minerals
In mining operations, settling ponds and tailings storage facilities accumulate fine solids that require periodic removal. The Hydroman® 100THY45-6P handles these demanding applications with ease. Its high-chrome wear parts resist abrasion from sharp mineral particles, while the agitator breaks up compacted layers at pond bottoms.
For copper mining, the pump extracts copper-bearing sands and gravels from tailings ponds, enabling reprocessing of residual ore. For coal preparation plants, it cleans ash sumps and conveyor tunnel sumps where conventional pumps fail due to solids loading.
River, Lake & Harbor Dredging: Removing Contaminated Sediment and Maintaining Navigation Channels
Municipalities and port authorities face constant challenges with silt accumulation that restricts vessel access and degrades water quality. The pump‘s 120mm solids-handling capacity allows it to pass small rocks and debris without clogging.
When mounted on an excavator positioned on a barge or the shoreline, the unit reaches deep deposits and systematically removes sediment. The vertical hydraulic pump configuration keeps the motor above the heaviest solids while the agitator does the hard work below.
Frequently Asked Questions (FAQ) About the Hydroman® 100THY45-6P
Q1: What is the power source requirement for the 100THY45-6P Hydraulic Submersible Pump for Dredging?
A: The pump requires a hydraulic power source with flow capacity matching the pump‘s specifications. Typical installations use excavators rated between 15 and 30 tons, drawing directly from the machine‘s auxiliary hydraulic circuit. Alternatively, a standalone diesel-powered hydraulic power pack can be used when excavator mounting is not feasible.
Q2: What is the maximum operating depth for this Vertical Hydraulic Pump for Submerged Dredge Operations?
A: The pump can operate at depths up to 250 meters (approximately 820 feet) when deployed with steel cable handling systems. Hydraulic drives have no electrical components to fail at depth, making them inherently suitable for deepwater dredging compared to electric submersible pumps.
Q3: What is the expected service life of wear parts under typical sand dredging conditions?
A: Service life depends on material abrasiveness and operating hours. Under typical sand and gravel dredging conditions, high-chrome wear parts generally last 2,000 to 4,000 hours before replacement is needed. Lower pump speeds, made possible by the variable-speed hydraulic drive, further extend component life.
Get Your Hydroman® 100THY45-6P Hydraulic Driven Dredge Pump Today
The Hydroman® 100THY45-6P Hydraulic Driven Dredge Pump delivers reliable 4 Inch Hydraulic Submersible Pump performance in the toughest underwater environments. This 45kW vertical pump is designed for underwater dredging, sand and silt removal. Contact us today to discuss your project requirements and request a quote.
