Magflow® TS Centrifugal End Suction Water Pump Specifications

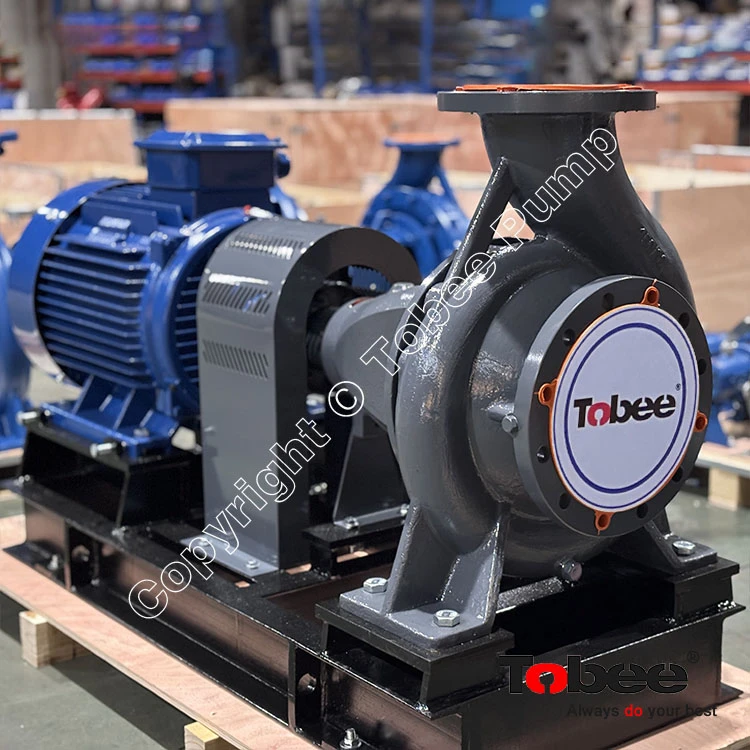

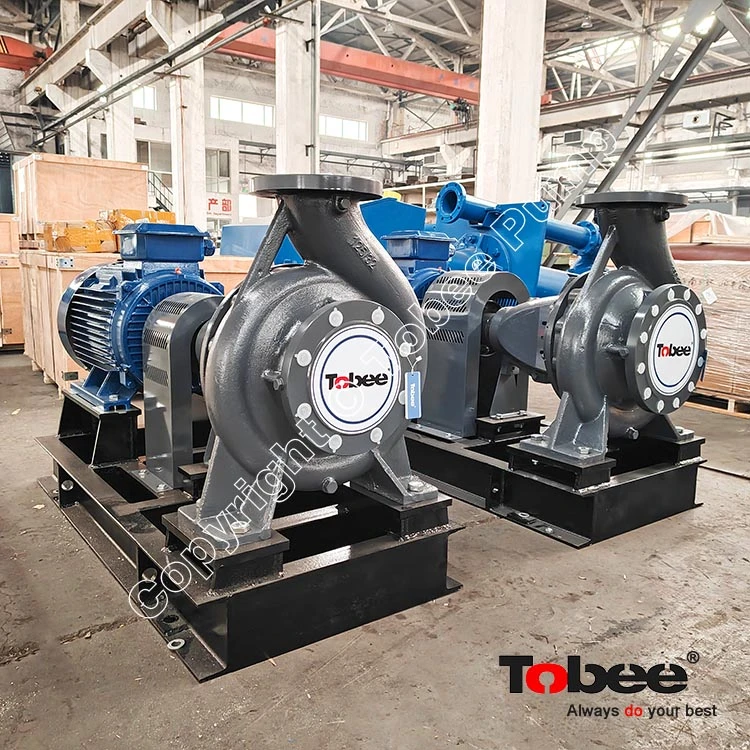

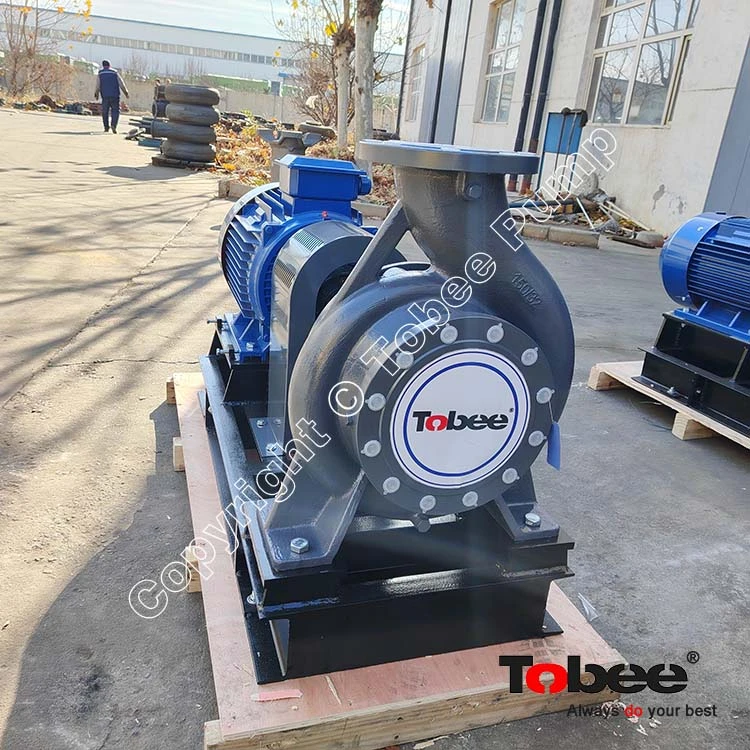

Magflow® TS End Suction Pump Product Description
Magflow® TS Series Centrifugal End Suction Water Pump represents of high-efficiency, energy-saving single-stage end-suction (axial intake) centrifugal pumps, jointly developed nationwide as an advanced optimization of traditional model BA, B, and legacy water pumps.
Key Advantages

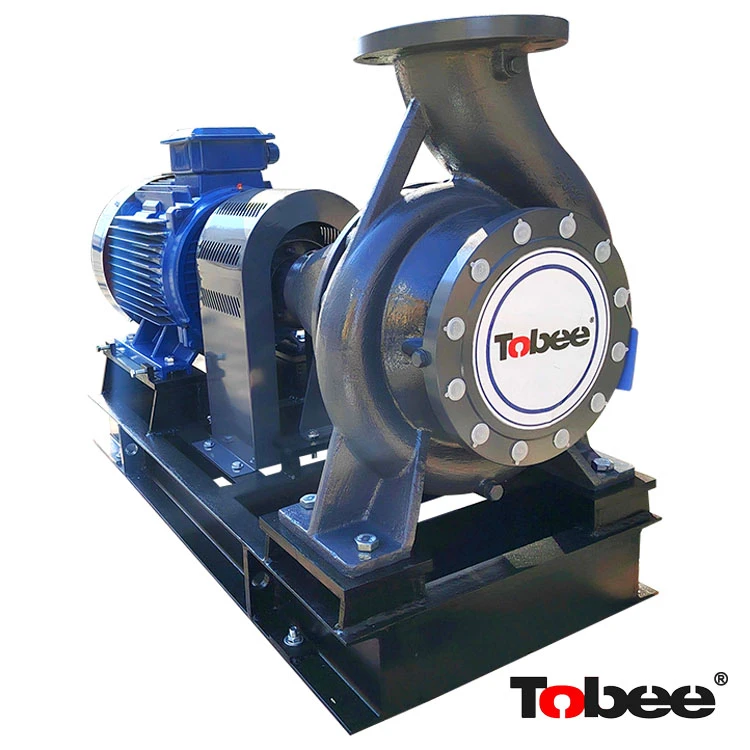

Magflow® TS End Suction Pump Design Features
ISO 2858 Compliance: Engineered in full compliance with international standards for dimensions and operational capabilities.
Back-Pull-Out (BPO) Construction: Features a back-opening structure that allows the rotor assembly to be inspected or serviced without moving the suction piping, discharge piping, or the motor.
Robust Rotor & Bearing Assembly: Composed of the impeller, shaft, and rolling bearings, supported by suspended bearing units designed to manage both radial loads and axial forces.
Dynamic Balancing: Utilizes front and back sealing rings alongside a balance hole on the rear impeller cap plate to effectively balance axial forces.
Advanced Sealing System: Incorporates a protective shaft sleeve with an O-ring to prevent wear and leakage where the shaft passes through the packing chamber, combined with a packing gland system to prevent air ingress and fluid leakage. F
lexible Drive & Standard Rotation: Connects to the motor via an extended flexible coupling, featuring a standard clockwise rotation when viewed from the drive end.

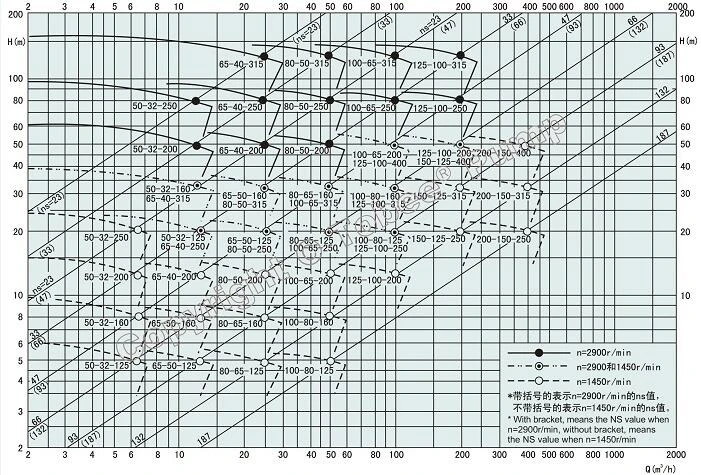

Magflow® TS Centrifugal Water Pump Quick Selection Chart
Magflow® TS End Suction Centrifugal Water Pump Performance Parameters
|
Model |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Power P (kw) |
Eff.η (%) |
NPSHr (mm) |
|
TS50 |
3.4-15 |
3.7-68.8 |
1450/2900 |
0.55-11 |
60 |
2-2.5 |
|
TS65 |
6.8-30 |
3.7-126.8 |
1450/2900 |
0.55-30 |
69 |
2-2.5 |
|
TS80 |
13.6-60 |
3.6-128 |
1450/2900 |
0.55-45 |
75 |
2.5-3 |
|
TS100 |
27.3-120 |
3.4-115.5 |
1450/2900 |
1.5-75 |
78 |
3.5-4.8 |
|
TS125 |
56-240 |
8.5-132.5 |
1450/2900 |
2.2-110 |
81 |
3.8-5 |
|
TS150 |
99-240 |
12.4-57.5 |
1450 |
15-55 |
81 |
2.5-3.5 |
|
TS200 |
197.7-460 |
14.8-55.8 |
1450 |
30-90 |
82.5 |
3.-4.5 |

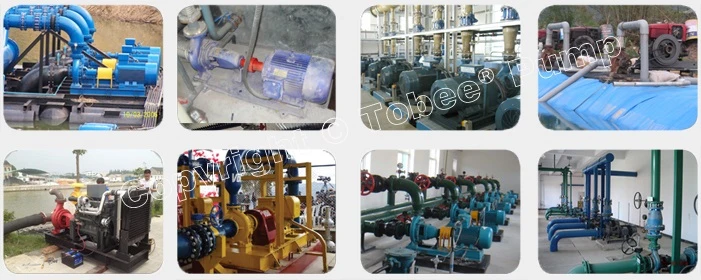

Magflow® TS Centrifugal Water Pump Typical Applications
