TS/TSA Series

MagFlow^® TS and TSA series are single-stage, horizontal end suction centrifugal pumps built with a back-pull-out structural layout, an inlet suction port on one end, and a top discharge outlet. This compact, field-proven design makes them a popular choice for city water supply, HVAC systems, agricultural irrigation, and general industrial fluid transfer.

Key design features:

Single-stage impeller — a single spinning impeller boosts fluid velocity and pressure, delivering reliable performance for general-duty pumping tasks.
Back pull-out structure — the motor, bearing assembly, and rotating parts can be withdrawn from the back of the pump for inspection or repair without disconnecting the suction and discharge piping, minimizing downtime.
Horizontal base-mounted design — the pump sits on a common metal base plate directly aligned with an electric motor, simplifying installation and alignment.
Shaft sealing — standard packing glands or mechanical seals prevent air ingress and water leakage during continuous operation.

TS vs. TSA: Both series share the same core end-suction hydraulic design; TSA is typically configured as a base-mounted variant suited to applications like water treatment plants, offering the same maintenance-friendly back pull-out access with mounting options tailored to fixed installation sites.

Common applications:

Municipal water — city water distribution and drainage systems.
Agriculture — farm irrigation and general water transfer.
Industrial — liquid processing, factory circulation lines, and cooling water loops.
Commercial buildings — HVAC heating and chilled water loops.

View More Show Less

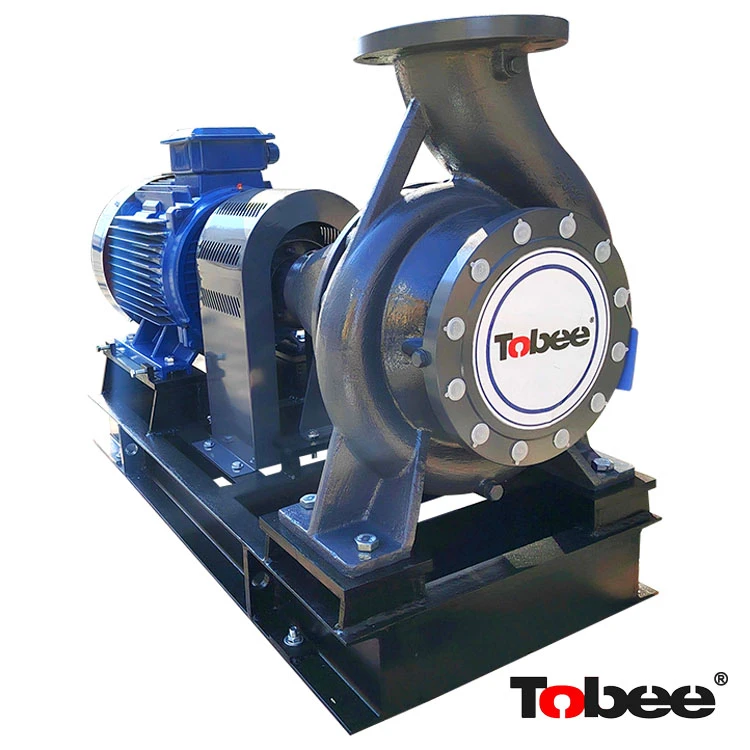

Magflow^® TS Centrifugal Water Pump

Size

50-200 mm

Capacity

6.3-400 m³/h

Head

5-125 m

Motor Power

0.55-110kw

Speed

2900rpm/1450rpm

Magflow^® TS End Sution Centrifugal Water Pump for delivering clean water or wate like fluids with the temperatuer below 80℃

Inquire Now

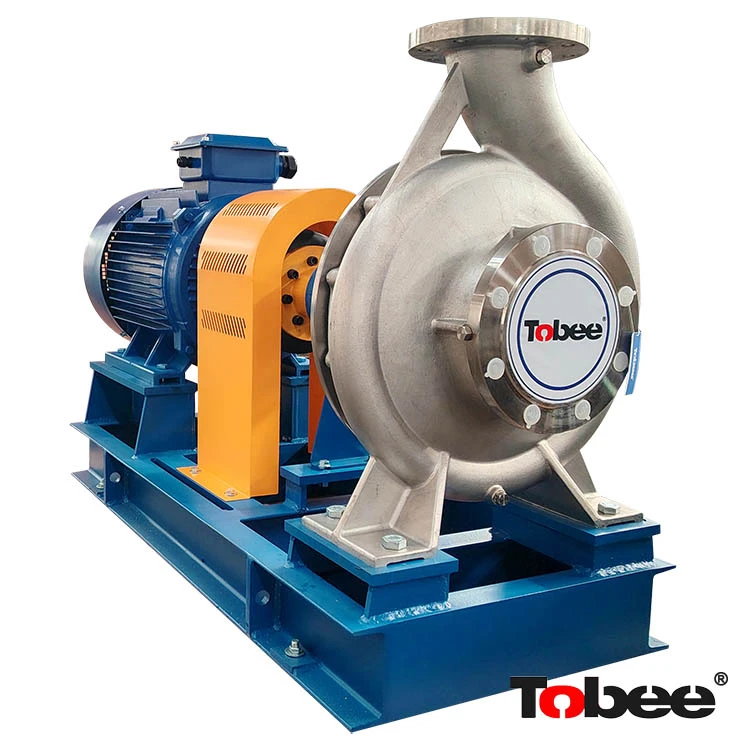

Magflow^® TSA End Suction Water Pump

Size

32-300 mm

Capacity

3.1-1404 m³/h

Head

2.3-155 m

Motor Power

0.55-315kw

Speed

2900rpm/1450rpm

Magflow® TSA End Suntion Pump is suitable for industrial and city water supply, transportation pure water or other liquids which physical and chemical nature is similar to pure water, and the temperature should not be higher than 80 ℃.

Inquire Now
