2500-8x6x14 Mission Pumps with Ex-proof motor

Sandman Mission 2500 8x6x14 Centrifugal Pump for Mud Mixing

SPECIFICATIONS

Size	8" x 6" x 14"
Capacity	55-560 m³/h
Head	8-67 m
Speed	800-1750 rpm
Eff.	65%
Power	Max. 110 kW
Impeller dia.	8-14 inch
Motor cert.	CNEx, IECEx, ATEX

Inquire Now Next Product

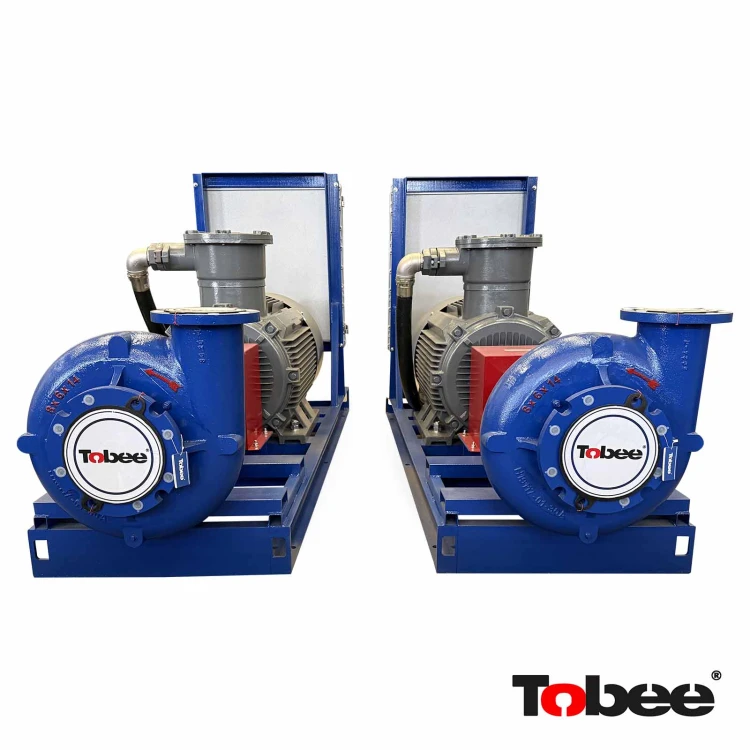

Mission 2500 8x6x14 C-Pump

Sandman^® Mission 2500 8x6x14 Centrifugal Pump is designed for demanding mud mixing and fluid-transfer applications in drilling, solids control and industrial processing systems. Its robust 8x6 configuration and customizable impeller provide high flow capacity and reliable circulation of drilling mud, weighted fluids and abrasive slurry.
The pump is suitable for continuous-duty operation where efficient mud circulation, strong solids-handling capability and dependable wear resistance are required.

Design Features

Heavy-Duty Construction Designed for continuous operation in harsh oilfield, mining, and industrial environments.

High Flow & Reliable Performance Provides excellent hydraulic performance for large-volume fluid transfer applications.

Open Impeller Design Handles abrasive fluids and high solids content with reduced clogging risk.

Superior Wear Resistance Available with hard iron, high chrome, stainless steel, and other material options for different working conditions.

Robust Shaft & Bearing System Ensures stable operation, longer service life, and reduced maintenance.

Easy Maintenance Replaceable wear parts and simple structure help minimize downtime.

Versatile Applications Widely used for drilling mud transfer, solids control, frac systems, HDD, slurry transfer, and industrial pumping.

Mission 2500 8x6x14 Pump Material Options

The key Mission pump components are manufactured with carefully selected materials to provide excellent mechanical strength, impact resistance, wear resistance, and long-term durability under continuous-duty operation.

Material	Key Advantages	Typical Applications
Hard Iron	Improved wear resistance and durability	Drilling mud, slurry transfer
High Chrome Alloy	Excellent abrasion resistance, extended service life	Mining slurry, sand handling, abrasive fluids
Stainless Steel	Excellent corrosion resistance	Chemical fluids, marine applications
Aluminum Bronze	Thermal stability and cavitation resistance	Offshore and special applications
Tungsten Carbide Coating	Hard, wear-resistant surface improves the impeller's shear/mixing	High-velocity slurry, abrasive drilling fluids, sand-laden fluids

With flexible material selection and customized solutions, Sandman Mission 2500 8x6x14 Horizontal Pump can be configured to meet different operating environments, helping customers achieve longer service life, reduced maintenance frequency, and lower total operating costs.

Recommended Maintenance Kit for Mission 2500 8x6x14 C-Pump

No.	Part Number	Stock #	Description	Materials
1	H19117-01-30A	19117AH	Casing, 8x6x14	Hard iron
2	H2525-XX-30	Varies	Impeller, 8x6x14 Semi-open	Hard iron
3	H2506-01-30A	2506-37AH	Wear Pad, 8x6x14	Hard iron
4	H22223-01-30	22223H	Stuffing box, Mech. Seal	Hard iron
5 (option)	H20614-01-30	20614H	Stuffing Box, Packed	Hard iron
6	H22451-1	648414308	Mechanical Seal	Tungsten carbide
7	8264-24-OB	648402600	Packing, Shaft	Teflon
8	H20612-02-33	646490557	Shaft	AISI 4140
9	H20613-21A	646492505	Shaft Sleeve (M.S. Pump)	416SS
10	H20613-21G-7A	646490656	Shaft Sleeve (Pack Pump)	Ceramic
11	H20615-1	661009010A	Inboard Bearing, with spacer	Customized
12	H20616-1	648408201S	Outboard Bearing	Customized
13	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
14	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
15	20619A	641103312	Grease Seal Kit	Buna-n

Successful Case

Sandman Mission 2500 Supreme 4x3x13 Pump

Oilfield fluid transfer & well service in Middle East oil field

Vertical pumps for vessel pumping system upgrade

Mission Magnum for marine ballast transfer

High-performance mud transfer for HDD

XP Blender pump on Frac Truck

Pump solutions for marine terminal project

Kuwait government fire protection project

Drilling fluid solids control project

Explore More

Looking for a Mission 2500 Supreme 8x6x14 replacement pump or complete pump package?

We can supply the bare shaft pump, electric motor-driven unit, diesel engine pump, hydraulic-drive configuration, and 8x6x14 replacement spare parts according to your operating conditions.
