Sandman Mission 8x6x14 Centrifugal Diesel Engine Pump

SPECIFICATIONS

Size	8" x 6" x 14"
Capacity	55-560 m³/h
Head	8-67 m
Speed	1500-2100 rpm
Eff.	65%
Power	Max. 110 kW
Impeller dia.	8-14 inch
Cooling system	Water cooled, Radiator cooled, Heat exchanger cooled

Inquire Now

8x6x14 Diesel Driven Centrifugal Pump

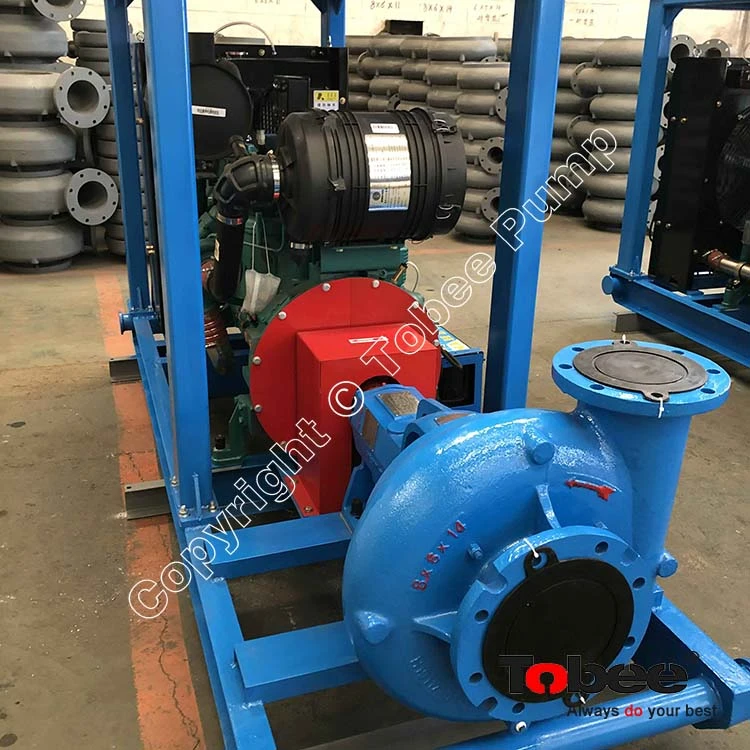

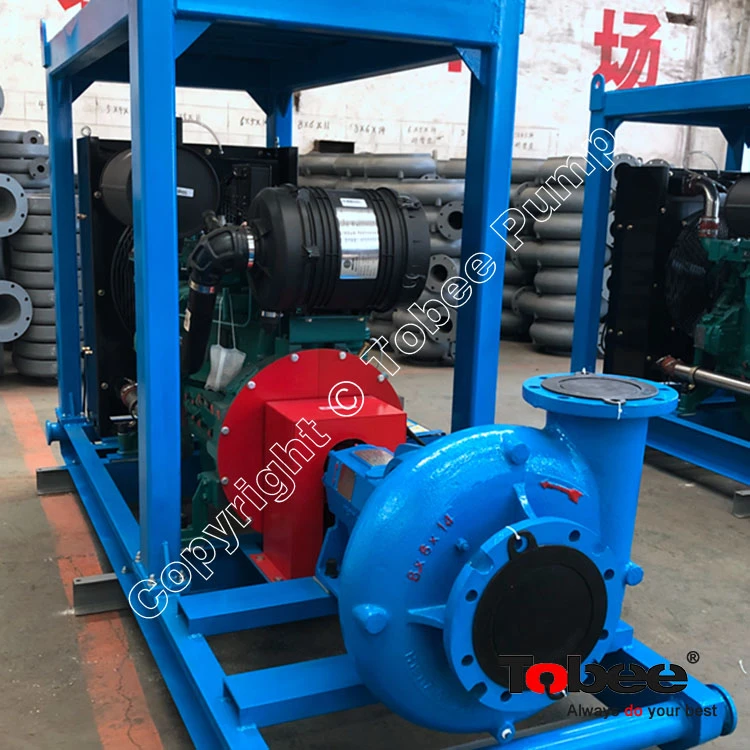

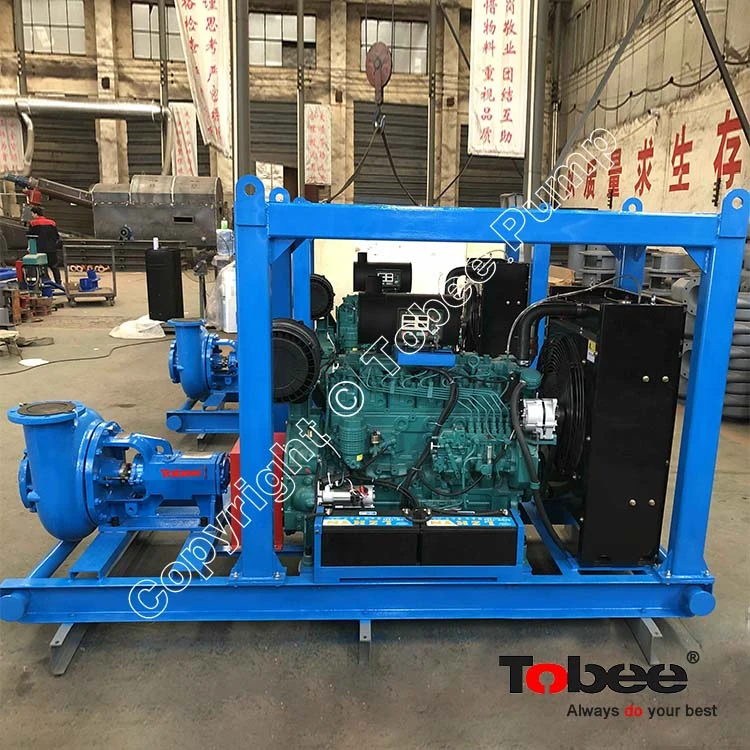

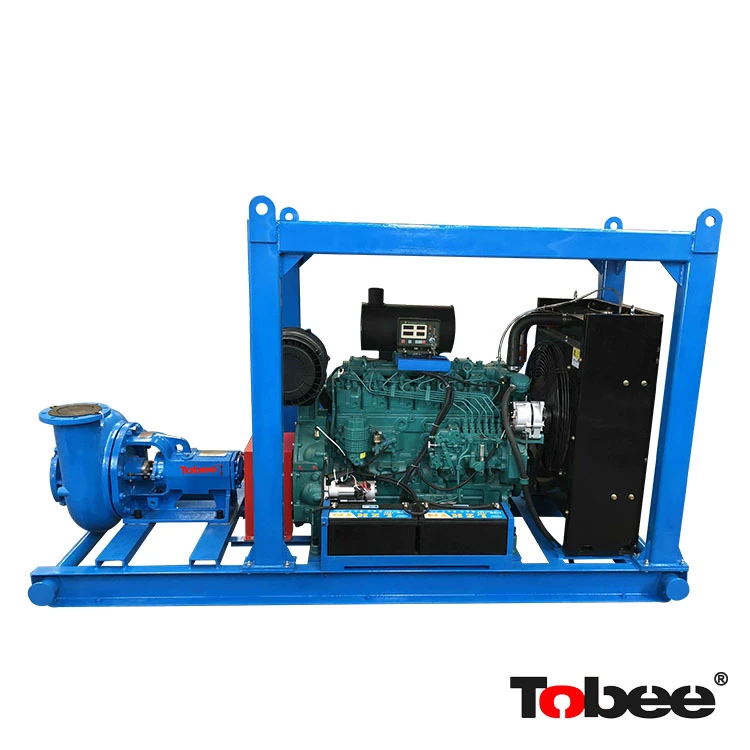

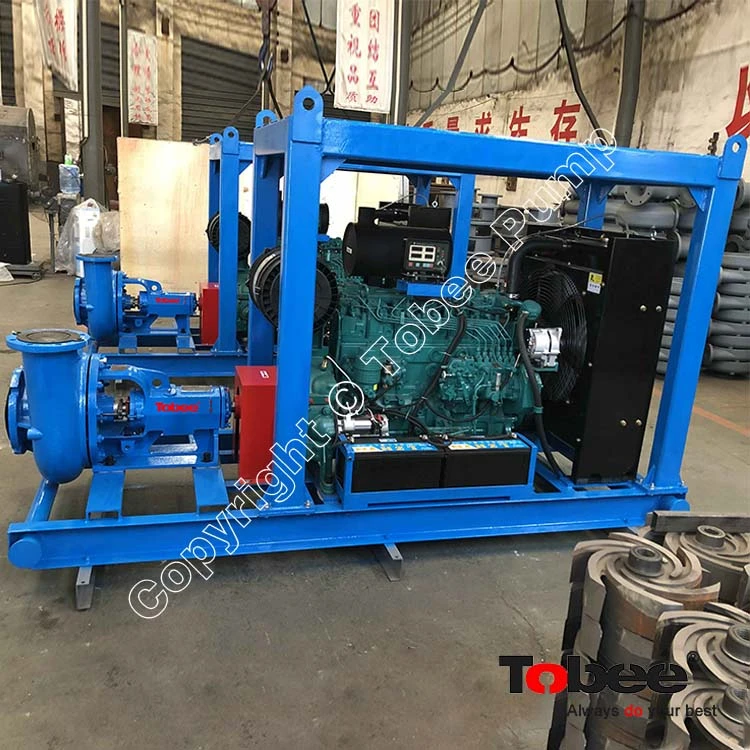

Sandman^® Mission Magnum type 8x6x14 Diesel Engine Centrifugal Pump comes as a single stage pump paired with a complete skid and diesel engine, built to transfer water over longer distances to a wellsite, no electrical hookup required, no separate genset to haul out. Everything the crew needs to move fluid is bolted to one skid: pump, engine, coupling, and controls, ready to be dropped at the location and fired up.

This same 8x6x14 pump platform is also available coupled to a diesel engine for mixing and transferring drilling mud, with an electric motor version offered as an alternative, so the diesel unit isn't a stripped-down substitute for the electric version. It's a parallel option, built for sites where diesel simply makes more operational sense.

Design Features

Complete Diesel-Driven Package

Mission Magnum 8x6x14 centrifugal pump
Diesel engine drive for independent operation
Skid-mounted design for easy transportation and installation
Suitable for remote and mobile applications

Heavy-Duty Pump Construction

14-inch open impeller for abrasive fluids
Heavy-duty shaft and long-life bearings
External impeller clearance adjustment
Replaceable shaft sleeve and stuffing box components

Flexible Configuration

Mechanical seal or packing seal options
Optional control and monitoring system
Available with different diesel engine brands and power ratings
Customizable skid and package configuration

8x6x14 Mud Pump Spare Parts Kit

Sandman^® 8x6x14 Magnum Pump Spare Parts Kit includes commonly required wear, sealing, and maintenance components for routine servicing and pump overhaul.

Standard Maintenance Kit
For routine inspection and preventive maintenance, including seals, gaskets, packing, O-rings, and other consumable components.

Wear Parts Kit
For applications with abrasive drilling mud or solids, including impeller, casing, shaft sleeve, and other wear components.

Complete Overhaul Kit
A comprehensive package combining hydraulic wear parts, sealing components, bearings, and other critical replacement parts for major pump maintenance.

Material Options
Depending on the operating conditions, wetted components can be supplied in Hard Iron, High Chrome Alloy, Stainless Steel, Bronze, and other customized materials.

No.	Part Number	Stock #	Description	Materials
1	19117-01-30A	641101308	Casing, 8x6x14	Hard iron
2	19116-XX-30	641209903	Impeller, open, 8x6x14	Hard iron
3	22223-01-30	641116157	Stuffing box, Mech. Seal	Hard iron
4 (option)	20614-01-30	643365042	Stuffing Box, Packed	Hard iron
5	22451-1	648414308	Mechanical Seal	Tungsten carbide
6	25014-04M-B	661007005	Packing, Shaft	Teflon
7	20612-02-33	646490557	Shaft	AISI 4140
8	20943-21	641102182	Shaft Sleeve (M.S. Pump)	416SS
9	20613-21G-7A	641102181	Shaft Sleeve (Pack Pump)	Ceramic
10	20615-1	661009010A	Inboard Bearing	Customized
11	20616-1	648408201S	Outboard Bearing	Customized
12	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
13	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
14	20619A	641103312	Grease Seal Kit	Buna-n

Explore More

Diesel Magnum Pump Typical Application

Sandman Diesel‑engine‑driven Magnum centrifugal slurry pumps are skid‑mounted / trailer‑mounted mobile units, mainly deployed for sites without stable grid power, handling abrasive solids‑laden mud and slurry.

Transfer: clean, dirty, muddy, low viscous petroleum products, crude oil, acidic and various drilling fluids.
Remote wellsite water transfer: moving water over long distances to a wellsite where no other supply exists.
Drilling mud circulation: circulating drilling mud on the rig at high pressure, either as the primary circulation pump or as backup capacity.
Mud mixing and transfer: mixing and transferring drilling mud as part of the active mud system.
General oilfield transfer duty: frac discharge and suction, trash pumping, grinding duty, centrifugal sludge handling, and skid-mounted mixing across production and well-servicing operations.

Why Pair It With Diesel Specifically

Electric drive has its place — clean, quiet, easy to control. But diesel earns its spot on remote and mobile locations for reasons that have nothing to do with the pump itself:
No grid dependency. A diesel-coupled skid is a complete, self-contained pumping system. If the location has fuel, it has power.
Faster mobilization. No need to run cable, size a generator, or coordinate electrical hookup — roll the skid in, connect suction and discharge lines, and go.
Built for continuous, unattended duty. The Mission MAGNUM I platform underneath the diesel unit was engineered specifically for the toughest jobs in drilling, production, well-servicing, and industrial applications, the kind of long-duration duty cycles that diesel-driven equipment handles without complaint.
One skid, many jobs. The same base pump can be configured to circulate drilling mud at high pressure, or reconfigured for general transfer duty, with the engine drive giving it the mobility to move between locations as needs change.
