Sandman^® Mission Magnum 6x5x14 Pump with Diesel Engine

SPECIFICATIONS

Size	6" x 5" x 14"
Capacity	35-60 m³/h
Head	22-28 m
Speed	700-3500 rpm
Power	Max. 90 kW
Impeller dia.	6-14 inch
Cooling system	Water cooled, Radiator cooled, Heat exchanger cooled

Inquire Now Next Product

Mission Magum 6x5x14 Pump with diesel engine

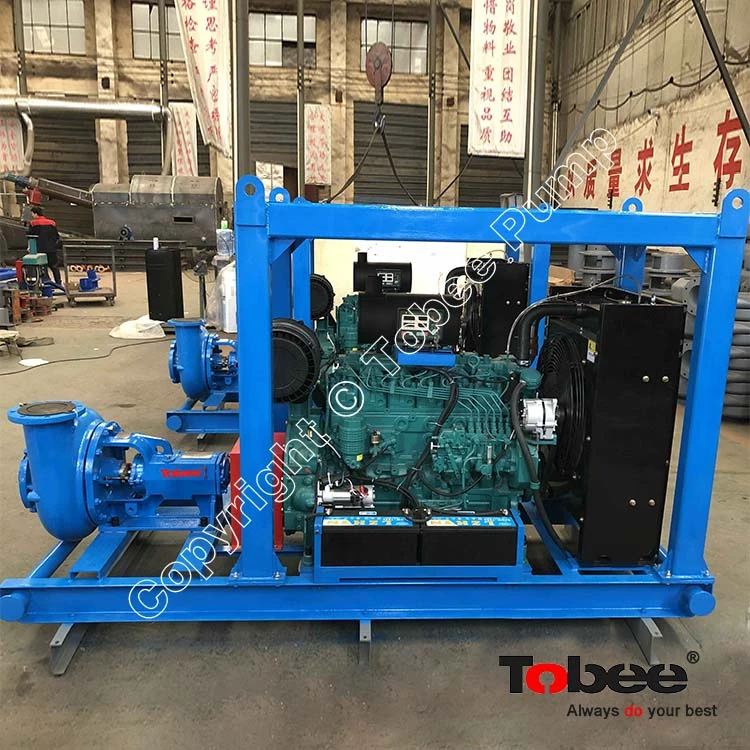

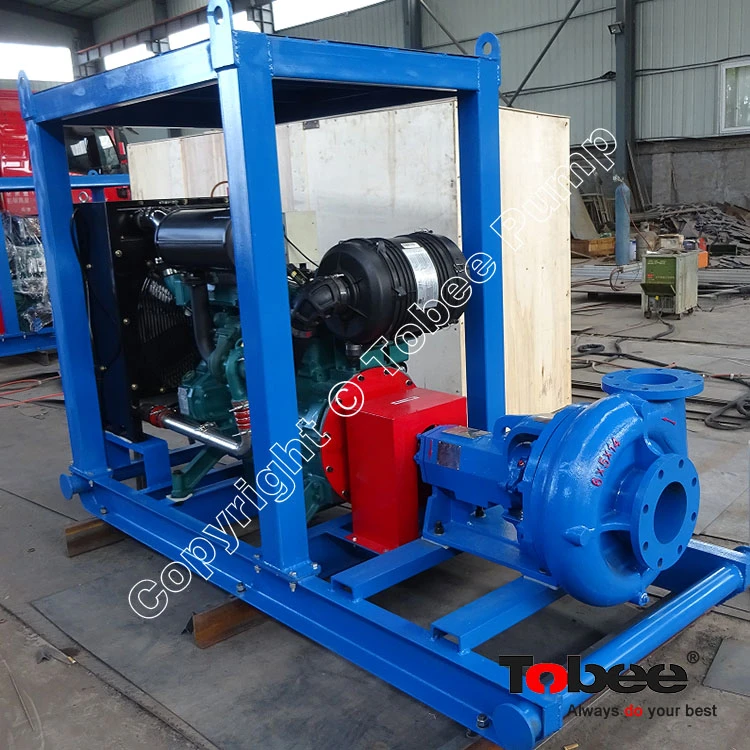

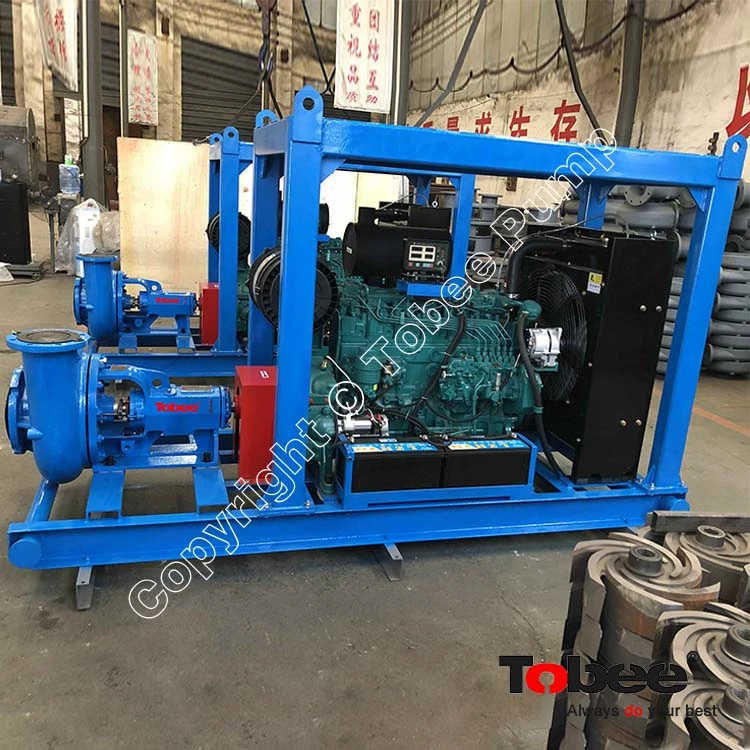

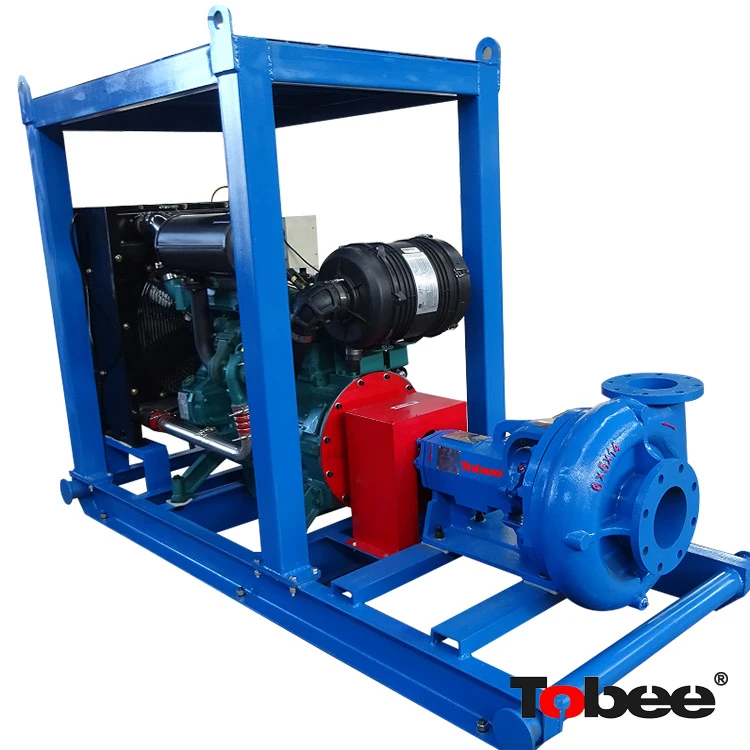

Sandman^® 6×5×14 MAGNUM I pump unit is skid-mounted and powered by a reliable diesel engine, providing independent operation in remote field locations where electrical power is unavailable. It is ideally suited for drilling fluid transfer, mud mixing systems, solids control equipment.

The MAGNUM I incorporates an open impeller design with wide-tipped vanes and an optimized tangential suction passage, creating a smoother flow pattern and reducing turbulence when handling abrasive fluids containing sand and solids. This design improves pump efficiency, minimizes wear, and extends service life under harsh operating conditions.

Mission Magnum Centrifugal Pump Key Advantages

Heavy-duty construction for severe service applications

High capacity and high head performance

Open impeller design for abrasive fluid handling

Excellent wear resistance and extended service life

Easy maintenance and reduced downtime

Multiple material options for different operating conditions

Diesel engine drive for remote field operation

Replaceable Wear Components

Wear parts are designed for easy replacement, reducing maintenance time and minimizing equipment downtime.

No.	Part Number	Stock #	Description	Materials
1	19123-01-30A	641101605	Casing, 6x5x14	Hard iron
2	19121-XX-30	641212105	Impeller, open, 6x5x14	Hard iron
3	22223-01-30	641116157	Stuffing box, Mech. Seal	Hard iron
4 (option)	20614-01-30	643365042	Stuffing Box, Packed	Hard iron
5	22451-1	648414308	Mechanical Seal	Tungsten carbide
6	25014-04M-B	661007005	Packing, Shaft	Teflon
7	20612-02-33	646490557	Shaft	AISI 4140
8	20943-21	641102182	Shaft Sleeve (M.S. Pump)	416SS
9	20613-21G-7A	641102181	Shaft Sleeve (Pack Pump)	Ceramic
10	20615-1	661009010A	Inboard Bearing	Customized
11	20616-1	648408201S	Outboard Bearing	Customized
12	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
13	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
14	20619A	641103312	Grease Seal Kit	Buna-n

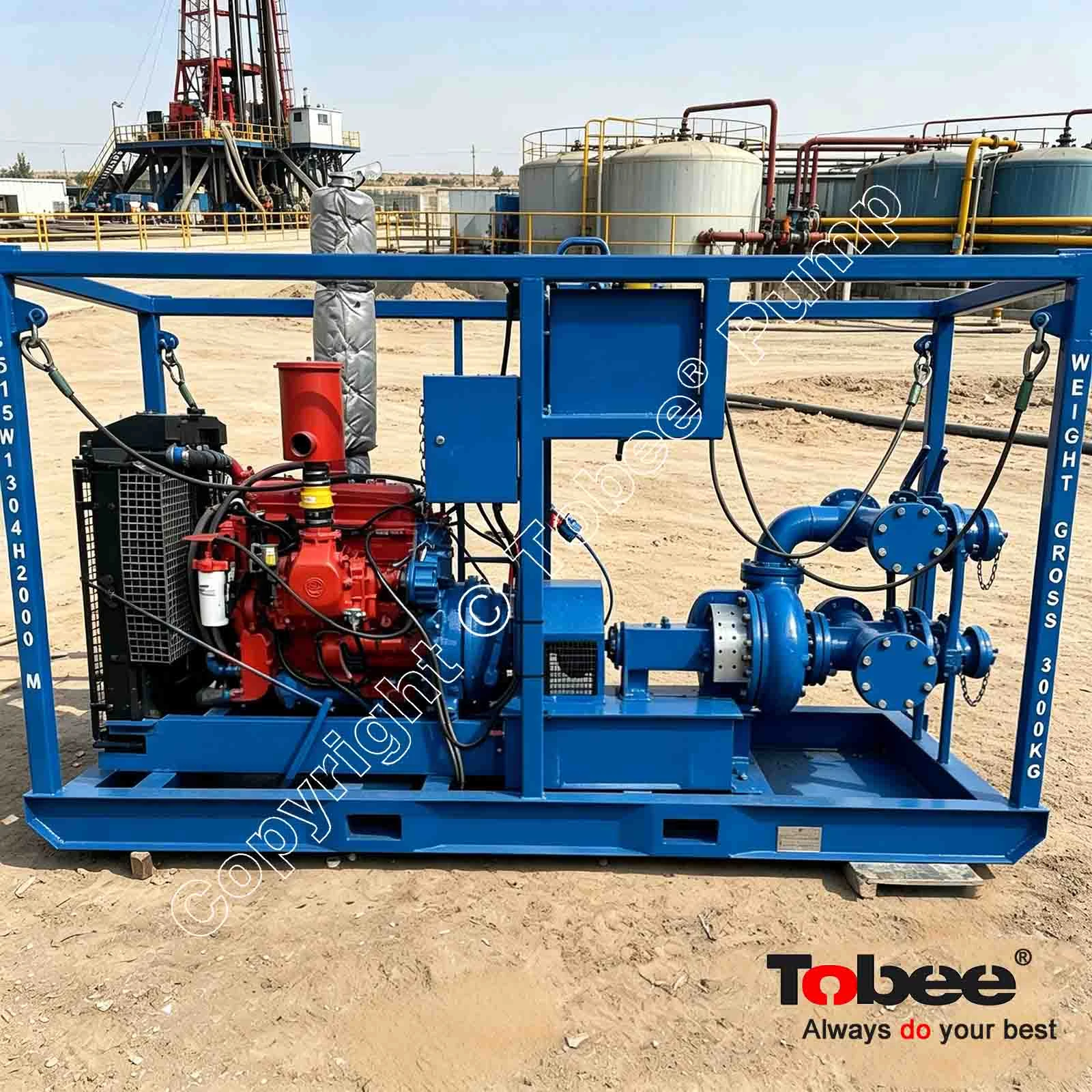

Mission Centrifugal Pump Applications

Drilling fluid transfer
Oilfield Drilling
Mud tank circulation
Mud mixing systems
Rig auxiliary pumping systems
Solids Control Systems
Desander feed pump
Desilter feed pump
Centrifuge feed pump
Sand and solids handling

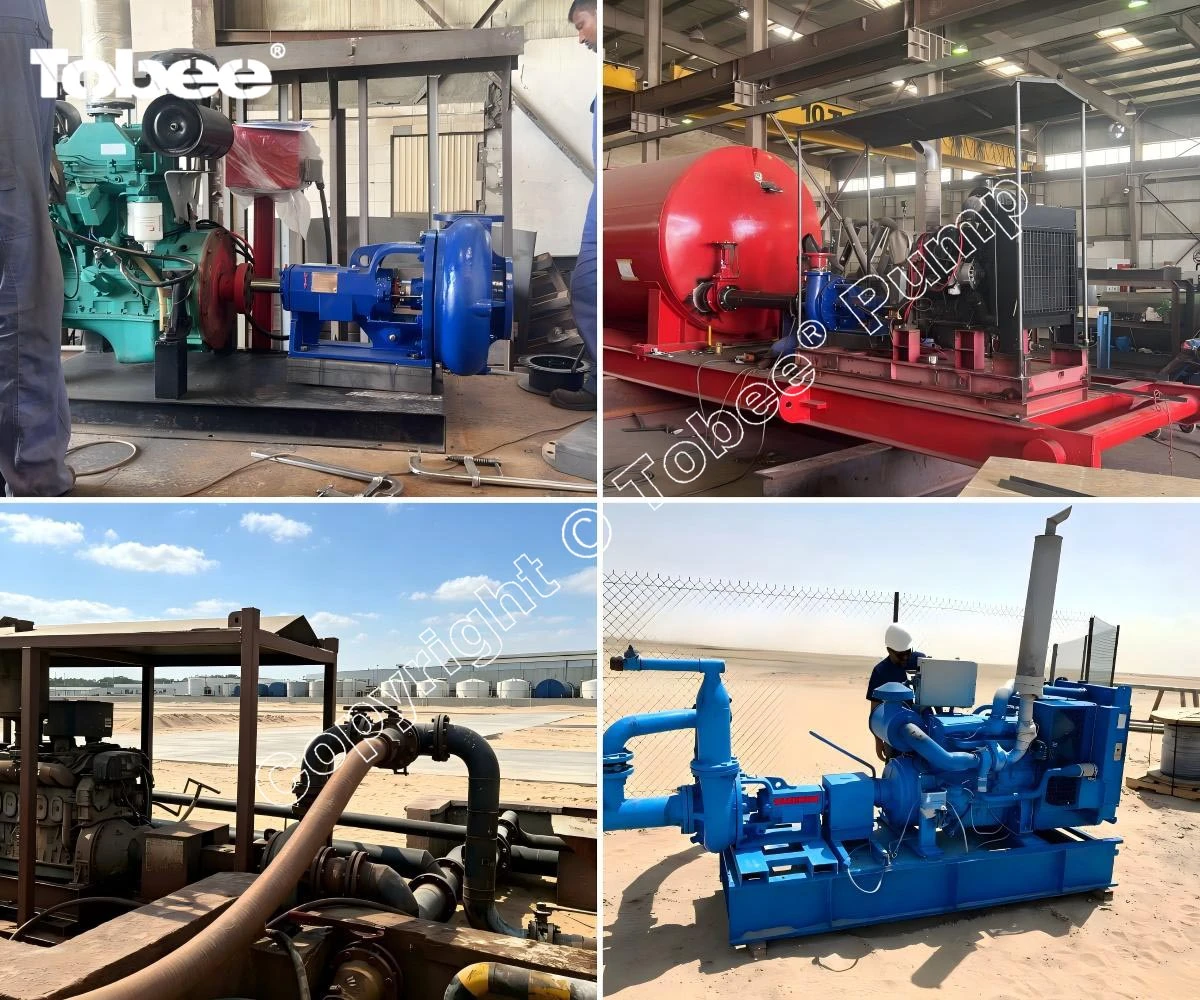

Application Flexibility

The Mission MAGNUM I 6×5×14 pump package is designed to provide reliable performance across a wide range of operating conditions. Its versatile design allows it to be integrated into various oilfield and industrial systems requiring continuous fluid transfer and circulation.

Typical operating environments include:

Land drilling rigs
Offshore drilling support systems
Workover and well service units
Fracturing support equipment
Solids control packages
Mobile pumping systems
Industrial process facilities

The diesel-driven configuration makes the pump especially suitable for remote locations, emergency pumping operations, and temporary field installations.

Your Trusted Partner for Oilfield Pumping Solutions

Every oilfield operation demands equipment that can perform under pressure.

Our Magnum I 6×5×14 Diesel Driven Centrifugal Pump Package is designed to deliver dependable pumping performance, long service life, and easy maintenance in the toughest working conditions. It is the ideal choice for customers in the oilfield industry.

Send us your requirements today — we will help you select the most suitable pumping solution.
