Diesel Engine Pump Units

Sandman Mission Diesel Engine Pump Units are heavy-duty, skid-mounted centrifugal pumps built to match the fluid-end designs of the industry-standard Magnum I and 2500 Supreme slurry pumps. Engineered for off-grid power independence, they move large volumes of abrasive, solids-laden fluids anywhere reliable electricity isn't available.

Design Type

Self-contained diesel engine mounted on a solid steel skid
Open impeller with wide-tipped vanes and concentric casing to minimize turbulence and wear
Fully portable package for remote or mobile deployment

Key Advantages

Abrasion-Resistant Hydraulics — wide-vane open impeller design reduces jetting effect and wear when handling sand, mud, and slurry
Grid-Independent Power — self-contained diesel drive ensures dependable operation in remote, off-grid field locations
Low-Maintenance Build — replaceable shaft sleeves, wear pads, and versatile stuffing boxes cut downtime and spare-parts inventory
Full Interoperability — internal components and spares are fully compatible with standard Sandman centrifugal pumps and original Mission designs

Typical Applications

Oil & Gas Operations: mud circulation, rig water supply, and well-servicing tasks
Horizontal Directional Drilling (HDD): mixing, recycling, and boosting bentonite or polymer slurries along long bore paths
Mining & Dredging: transferring thick slurries, sand, and gravel from wet pits
Construction & Emergency Response: remote site dewatering, pipeline water supply, and high-flow fluid transfer
Industrial Support: high-capacity fire-fighting water packages and emergency backup fluid systems

View More Show Less

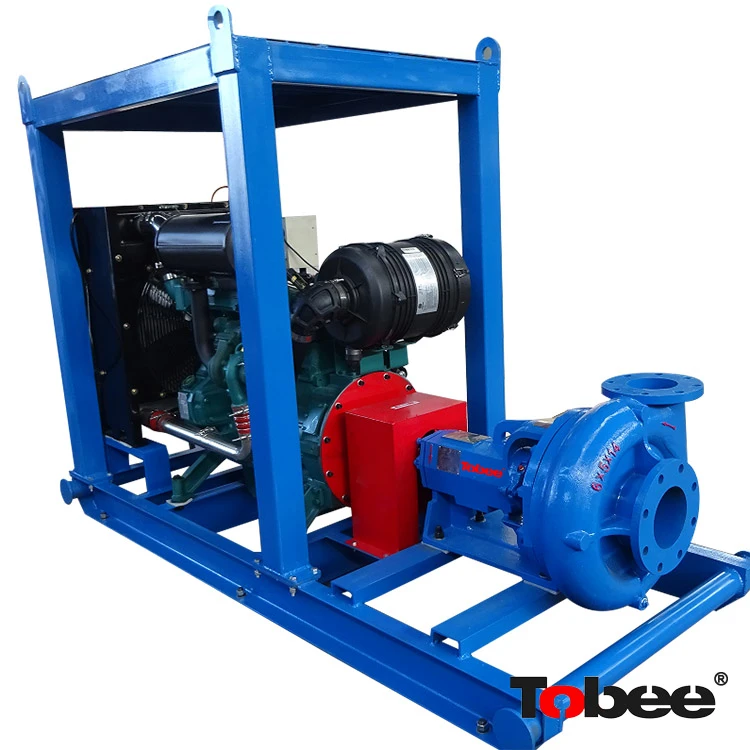

Sandman^® Mission Magnum 6x5x14 Pump with Diesel Engine

Capacity

200-220m³/h

Head

24-28 m

Speed

1800-2100 rpm

Max. Power

55 kW

Efficiency

65%

Sandman^® Skid Mounted 6x5x14 Centrifugal Pump Unit with Engine Driven used for drilling, production, well-servicing, and industrial applications.

Inquire Now

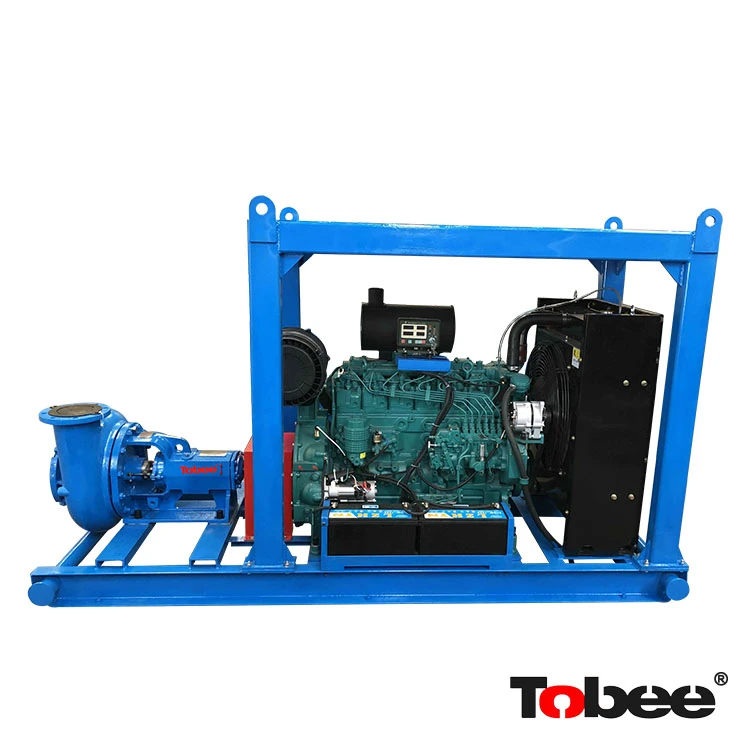

Sandman Mission 8x6x14 Centrifugal Diesel Engine Pump

Capacity

55-560 m³/h

Head

8-67 m

Speed

1500-2100 rpm

Max. Power

110 kW

Efficiency

65%

Sandman^® Mission Magnum 8x6x14 centrifugal pump combine with a diesel engine, the package provides reliable pumping performance where electric power is unavailable or where mobile operation is required.

Inquire Now
