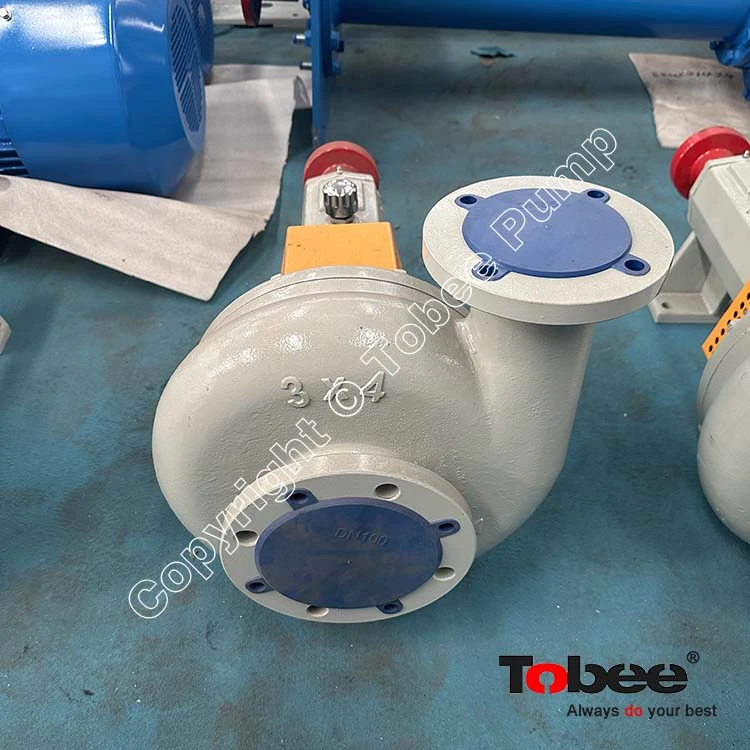

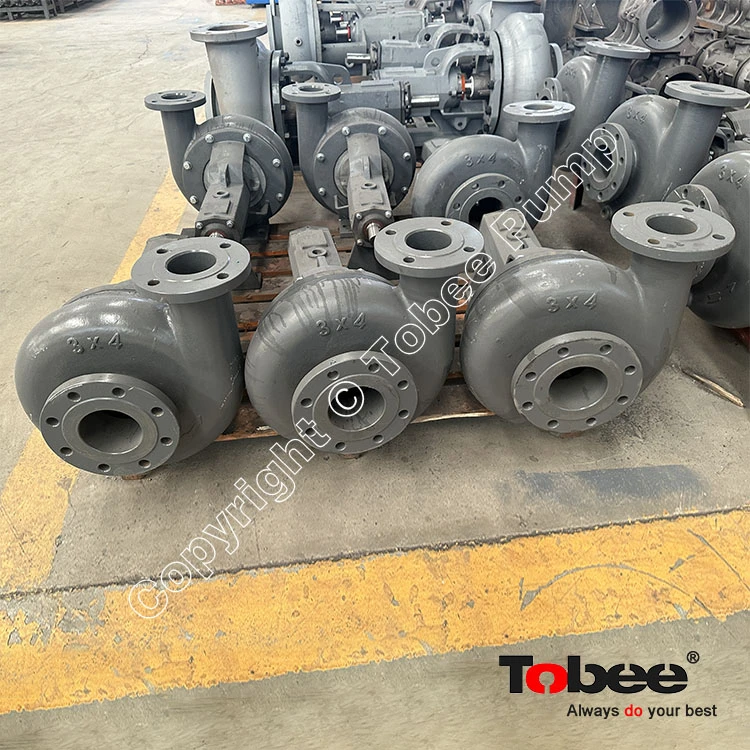

XBSY SB3x4J Centrifugal Sand Pump

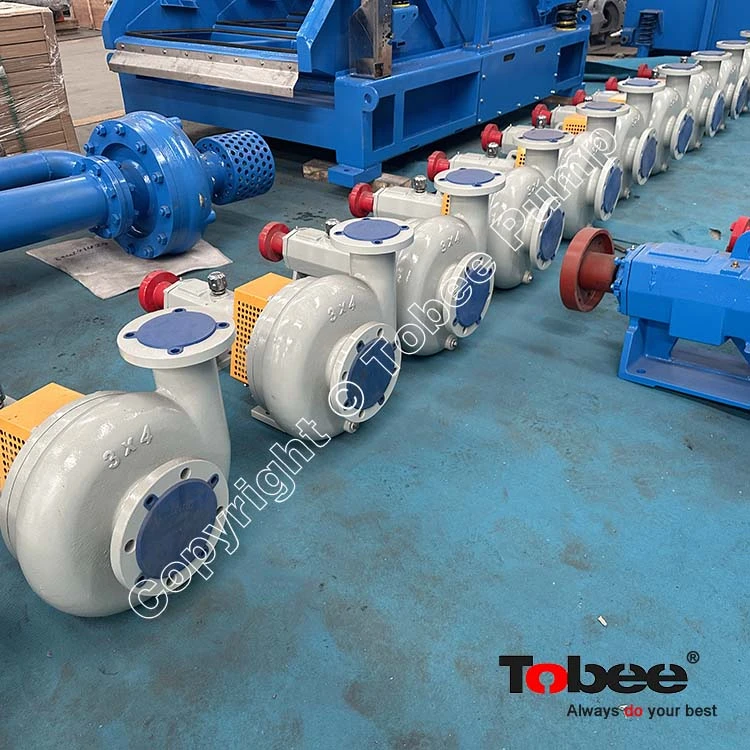

China XBSY SB series sand pump is developed matching pump according to the characteristics of oil and gas drilling equipment. It adopts an axial suction structure, and the flow passage parts are wear-resistant cast iron. It is suitable for conveying corrosive drilling fluid with suspended particles or other similar working conditions. Liquid medium is the best matching pump for desander, desilter and mixing funnel, and it is also an ideal filling pump for mud pump. Its parameter design fully considers that the matching equipment can work under the best working conditions. The versatility and interchangeability of parts are strong, the shaft seal leaks less, the work is reliable, the service life is long, and the maintenance is convenient.

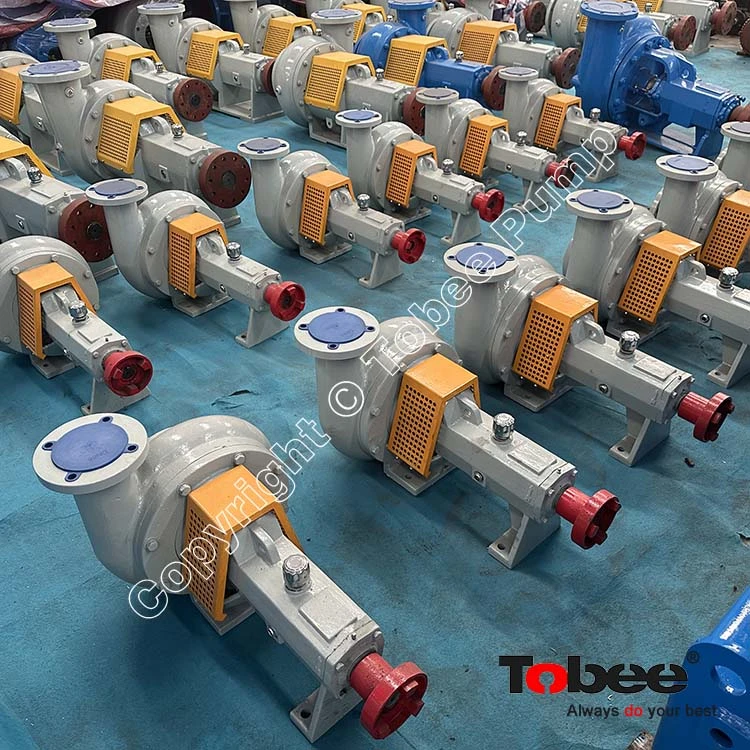

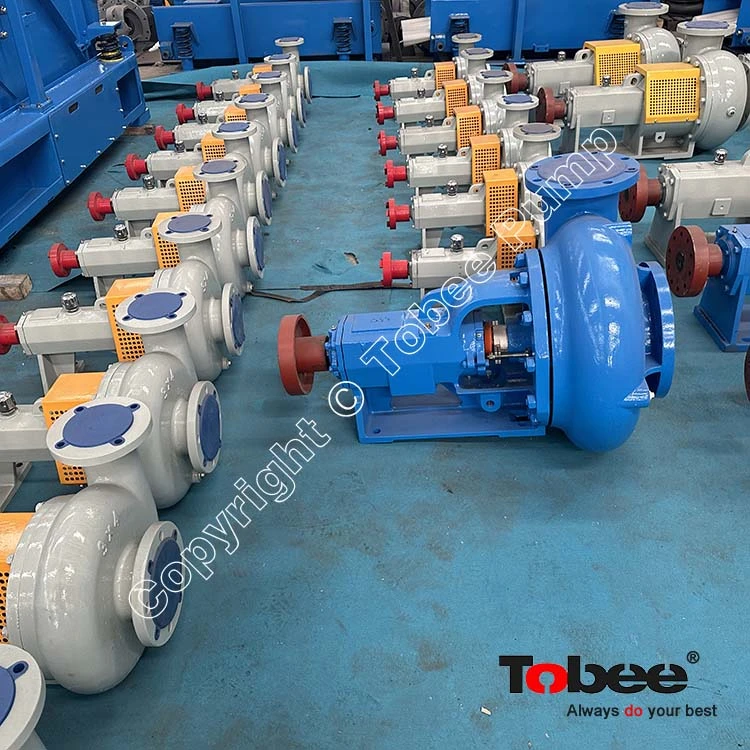

Sandman® SB Sand pumps include five types of centrifugal pumps: SB2x3, SB3x4, SB4x5, SB5x6 and SB6x8, There are more than 80 specifications based on supporting power from 4kW to 75kW. And for the drive type including direct connection and belt drive, and have two standards, metric and imperial respectively. There are two directions of rotation: forward and reverse.
SB3x4J Sand Pump Key Features
Compact and robust centrifugal design
Available with 9", 9½", and 10" impeller configurations
Suitable for continuous drilling-fluid circulation
Designed for desander and desilter feeding
Hard iron or cast iron wetted components
Mechanical seal or packing seal options
Compatible with 50 Hz and 60 Hz operating conditions
Easy access to major wear and maintenance components
Performance Specifications
| Model | Flow | Head | Speed | Efficiency | Motor Power |
| SB3x4J-10 | 85 m³/h | 26 m | 1460 / 1760 rpm | 61% | 15 kW |
| SB3x4J-9½ | 80 m³/h | 23 m | 1460 / 1760 rpm | 61% | 11 kW |
| SB3x4J-9 | 54 m³/h | 18 m | 1450 / 1750 rpm | 60% | 7.5 kW |

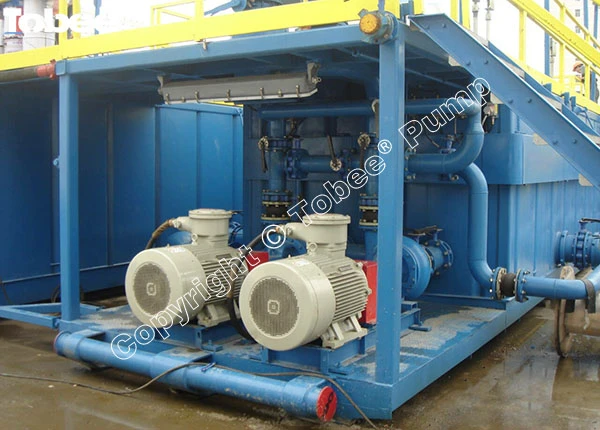

Typical Applications of SB3x4J Sand Pump
Drilling Fluid Transfer – Transfers drilling mud between mud tanks and processing equipment.
Desander & Desilter Feeding – Provides a continuous feed of drilling fluid to desanders, desilters, and mud cleaners.
Mud Mixing Systems – Circulates and transfers drilling fluids during mud preparation and conditioning.
Solids Control Systems – Supports efficient circulation through shale shakers and other solids-control equipment.
Drilling Rig Mud Circulation – Used for mud circulation and transfer in onshore and offshore drilling rigs.
Trip & Stripping Tanks – Handles drilling fluid transfer for trip tank and stripping tank systems.
Mud Tank Circulation – Helps maintain uniform drilling-fluid properties by circulating fluid within the mud system.
Explore More
Looking for a Replacement Centrifugal Sand Pumps?
Contact us for pump selection, technical specifications, pricing, and delivery time.
