What are Andman ACP125-250 Pumps?

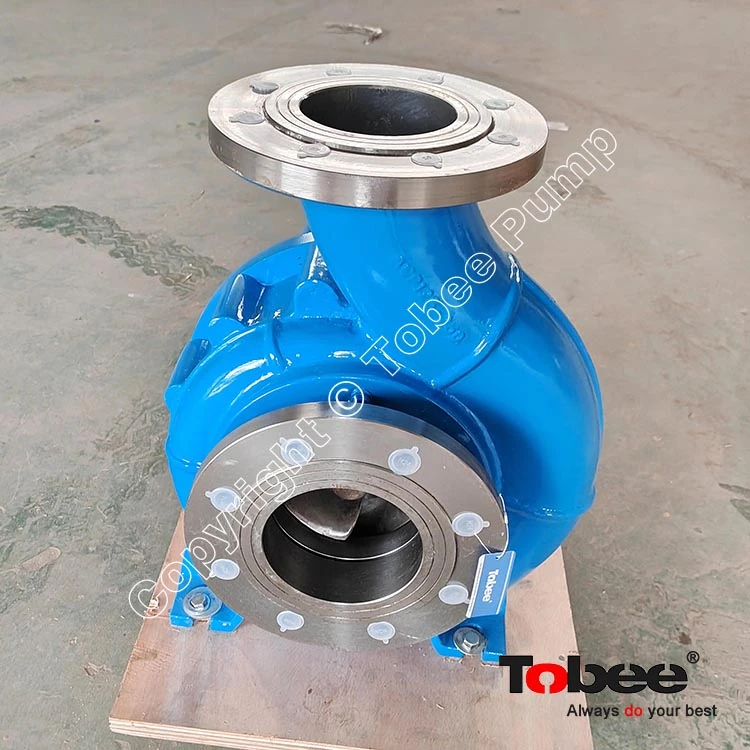

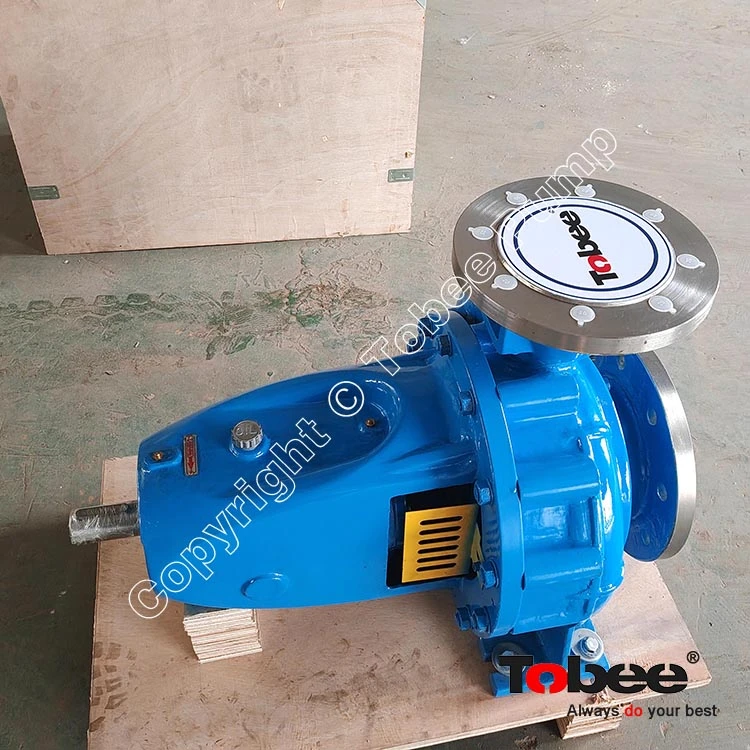

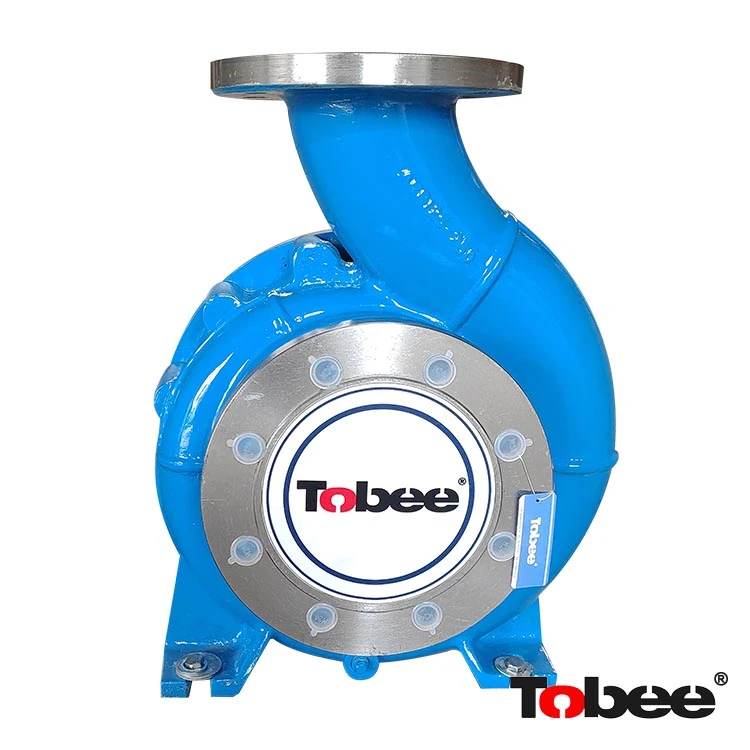

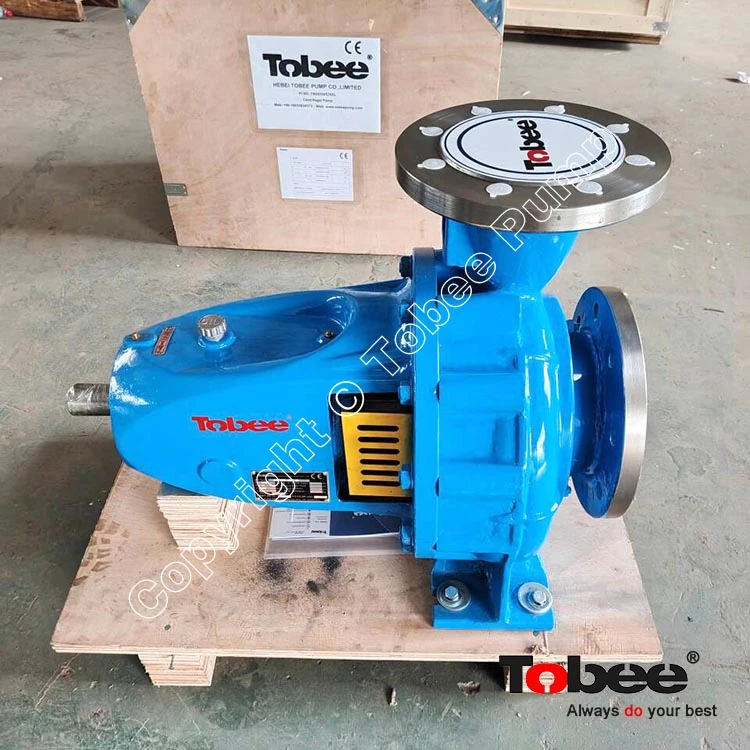

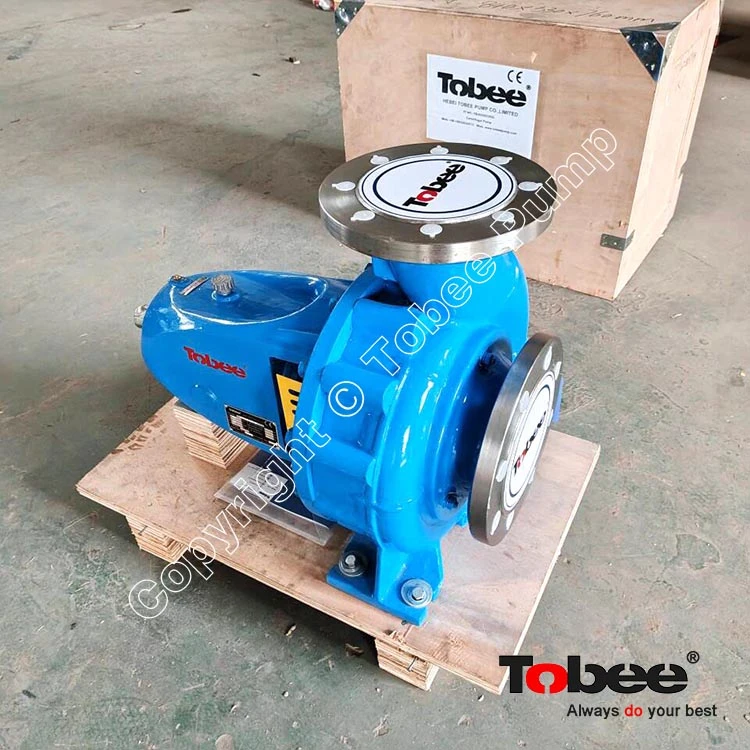

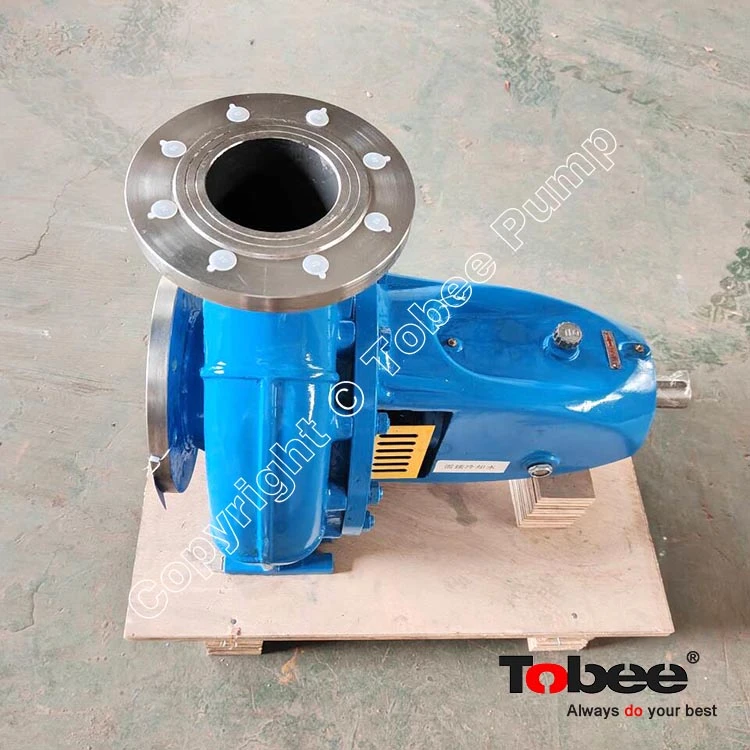

Andman ACP125-250 pump is a single-stage, single-suction, end-suction centrifugal pump primarily used for industrial process applications. Featuring a highly wear-resistant design and a range of impeller options, it is capable of handling media containing small amounts of solids or fibers, as well as lightly contaminated fluids.
ACP series includes many sizes from small process pumps to large pulp/process pumps, common Andman ACP Pump Models:
| ACP Pump Model | Typical Application |
| ACP 40-125 | Small process water, industrial liquids |
| ACP 50-160 | Water circulation, chemical process |
| ACP 65-250 | Industrial process pumping |
| ACP 80-315 | Medium flow industrial applications |
| ACP 100-250 | Paper mill process water, pulp systems |
| ACP 100-315 | Pulp & paper, industrial applications |
| ACP 125-250 | Paper stock, process liquids |
| ACP 125-315 | Pulp pumping, wastewater |
| ACP 125-400 | Larger process systems |
| ACP 150-315 | Paper pulp and industrial process |
| ACP 150-400 | High flow pulp/process applications |
| ACP 150-500 | Large pulp and industrial systems |
| ACP 200-400 | Medium consistency pulp, paper mills, large process pumping |
| ACP 200-500 | High flow process applications |
| ACP 200-625 | Large flow/high head applications |
| ACP 250-315 | Large volume low head applications |
| ACP 300-400 | Large industrial/pulp applications |
| ACP 300-700 | Very large flow applications |
| ACP 400-700 | Heavy industrial process duties |
Andman ACP125-250 Pumps Design Features
1. Centrifugal Pump Design
ACP pumps use centrifugal force to transfer liquid:
Liquid enters through the suction inlet
The impeller increases velocity and pressure
The casing converts velocity into discharge pressure
Typical design:
Single-stage
End suction
Horizontal or vertical installation options (depending on configuration)
Back pull-out design for easier maintenance
2. Impeller Options
ACP pumps can be equipped with different impeller designs depending on the application:
Closed impeller
→ Higher efficiency for clean liquids
Open / semi-open impeller
→ Better for liquids containing fibers or suspended solids
This makes ACP pumps suitable for industries where clogging resistance is important.
Andman ACP125-250 Pump Main Performance
| Pump Model | ACP125-250 |
| Pump Type | Single-stage, single-suction centrifugal pump |
| Impeller Type | Open impeller / process impeller |
| Flow rate (Q) | Approx. 50–300 m³/h |
| Head (H) | Approx. 10–55 m |
| Speed | About 1450–2900 rpm (depending on motor frequency and duty point) |
| Efficiency | Approx. 70–82% (depending on operating point) |
| Operating Temperature | Max. approx. 200°C |
| Pressure Range | Up to about 40–83 bar depending on configuration |
Typical Performance Points
| Speed | Flow | Head |
| 1450 rpm | 50–180 m³/h | 15–35 m |
| 1750 rpm | 80–230 m³/h | 25–45 m |
| 2900 rpm | 150–300 m³/h | 40-55 m |
Andman ACP125-250 Pumps for Sugar Pumping
ACP125-250 Pumps can be used for:
Raw juice transfer
Clear juice circulation
Thin juice pumping
Filtered juice transportation
Lime juice circulation
Carbonation process liquid transfer
Clarifier feed/return systems
Syrup circulation
Evaporator system liquid transfer
Process circulation
Suitable for:
Sugar cane mills
Sugar beet factories
Andman ACP125-250 Pumps are widely used in Condensate & Process Water
ACP125-250 Pumps can handle:
Condensate water
Cooling water
Washing water
Factory circulation water
Why Choose ACP125-250 for Your Sugar Plants?
Fiber and Particle Handling
Sugar juice may contain:
Fiber particles
Bagasse traces
Suspended solids
ACP pumps can be configured with suitable impeller designs for these conditions.
High Efficiency
Single-stage centrifugal design
Low energy consumption
Suitable for continuous production operation
Corrosion Resistance
Material options can be selected according to:
Juice acidity
Temperature
Chemical additives
Andman ACP125-250 Pumps for Sugar Industry
ACP125-250 is a single-stage centrifugal process pump that can be used in sugar production plants for transferring process liquids such as juice, water, and low-to-medium viscosity sugar solutions, suitable for sugar plants mainly for juice transfer, purification circulation, process water, condensate, and low-viscosity syrup applications, beet/cane washing through juice purification and crystallization processes.
