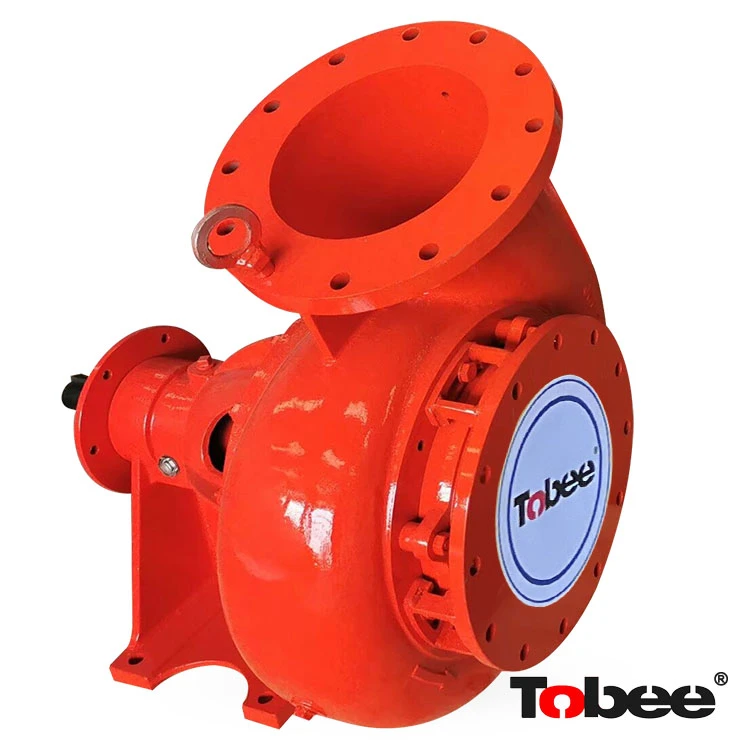

12x12-14 Basic Pedestal Standard Centrifugal Pump
Sandman® 612L20B-B Basic Pedestal Standard Centrifugal Pump is a heavy-duty 12x12-14 centrifugal pump designed for high-volume fluid transfer and solids-handling applications. Featuring a basic pedestal configuration, 12-inch suction and discharge connections, and a large enclosed impeller, this pump provides reliable hydraulic performance for industrial, oilfield, mining, wastewater, dredging, and slurry transfer duties.
Built with a durable cast iron casing, ductile iron enclosed impeller, stainless steel shaft, and tungsten carbide mechanical seal, the 612L20B-B pump is engineered for continuous operation in demanding environments. Its basic drive configuration allows flexible integration with electric motors, diesel engines, or other suitable external drive systems.
12x12-14 Standard Centrifugal Pump Key Features
Heavy-duty 12-inch suction and 12-inch discharge configuration
Large 14.88-inch enclosed four-vane impeller
Basic pedestal design for flexible drive arrangement
Cast iron pump casing for reliable structural strength
Ductile iron impeller for demanding industrial service
Stainless steel 17-4 PH impeller shaft
Tungsten carbide mechanical seal faces
Double-floating, self-aligning mechanical seal arrangement
Replaceable wear ring for simplified maintenance
Handles spherical solids up to 1.88 inches (48 mm)
Open single-row radial bearing and double-row thrust bearing
Oil-lubricated bearing and seal cavities
Bearing cavity oil level sight gauge
Seal cavity bottle oiler
ANSI flanged suction and discharge connections
Suitable for custom motor, engine, belt, or skid-mounted packages
Why Choose the 612L20B-B Basic Pedestal Pump?
Sandman® 12x12 Standard Centrifugal Pump combines high-volume pumping capability with a durable mechanical design and flexible drive options. Its 12x12 configuration, enclosed four-vane impeller, solids-handling capability, and heavy-duty bearing and seal arrangement make it a reliable solution for demanding industrial fluid transfer applications.
| Key Advantage | Customer Benefit |
| 12x12 Pump Size | Supports high-volume fluid transfer |
| 48 mm Solids Handling | Suitable for solids-containing liquids |
| Enclosed Four-Vane Impeller | Stable and reliable hydraulic performance |
| Basic Pedestal Design | Flexible drive and package configuration |
| Cast Iron & Ductile Iron Construction | Durable for demanding industrial service |
| Replaceable Wear Ring | Simplified maintenance and lower service costs |
| Mechanical Seal System | Reliable sealing performance |
| Heavy-Duty Bearing Assembly | Stable shaft support and continuous operation |
| ANSI Flanged Connections | Convenient system integration |
| Custom Package Options | Adaptable to different applications |
Typical Applications of 12x12 Standard Centrifugal Pump
The 612L20B-B Basic Pedestal Standard Centrifugal Pump is suitable for high-volume fluid transfer and solids-handling applications, including:
• Oil & Gas
Used for transferring process water, produced water, completion fluids, and other industrial fluids. The basic pedestal configuration allows integration into customized pumping packages and field equipment.
• Mining and Mineral Processing
Suitable for transferring water, slurry mixtures, process fluids, and solids-containing liquids in mining and mineral processing operations.
• Dredging and Sand Handling
Can be used in auxiliary pumping systems for transferring water and solids-containing fluids associated with dredging, sand handling, and aggregate operations.
• Wastewater and Industrial Water
Suitable for industrial wastewater transfer, settling pond management, drainage, and large-volume water movement where moderate solids handling capability is required.
• Construction and Dewatering
Provides high-volume pumping capacity for construction sites, excavation drainage, floodwater removal, and temporary water transfer systems.
• General Industrial Service
Suitable for process water circulation, tank transfer, cooling water movement, washdown systems, and other large-volume industrial pumping duties.
